Shop RULAND

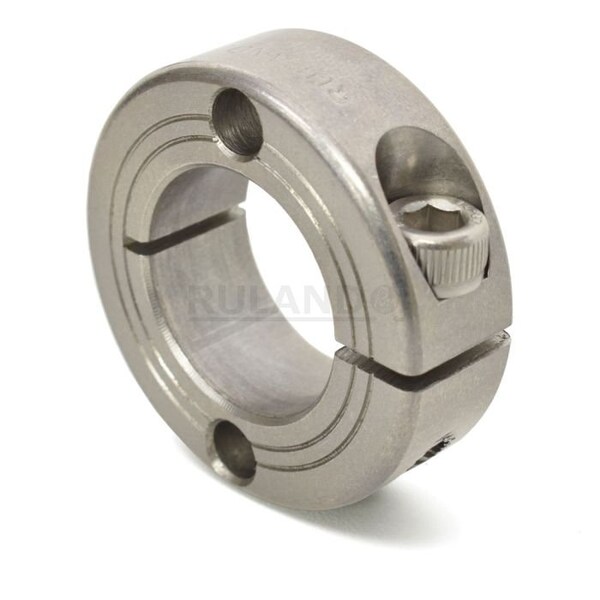

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-23-SS

  • Zoro # G008673135

product price:
$
28.79
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M6 x 16
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FHD-MCL-23-SS
Zoro #
G008673135
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
System of Measurement
Metric
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Mountable Shaft Collar
Screw Seating Torque
9.6 N-m
Bore Tolerance
+0.050/+0.012 mm
Collar Material Grade
303
Maximum Operating Temperature
176 Degrees C
Collar Material
Stainless Steel
Collar Material Finish
Bright
Shaft Tolerance
+0.000/-0.013 mm
Component Mount Type
Face Mount Holes
Minimum Operating Temperature
-40 Degrees C
Bore Type
Round
Collar Construction
1-Piece
Resistance Properties
Corrosion-Resistant
Shaft Locking Type
Clamp-On
Screw Material Grade
18-8 300 Series
Screw Location from Center
17.5 mm
Included Screws
Clamp Screw
Screw Material Finish
Bright
Number of Screws
1
Weight
0.27877 lbs

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 23 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Clearance Diameter 52.1 mm, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
