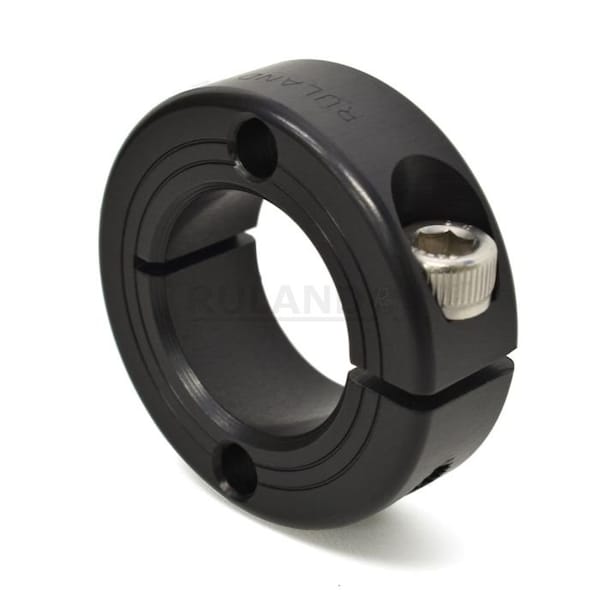

Ruland SHAFT COLLAR MOUNTABLE FHD-MCL-23E-AN - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-23E-AN

  • Zoro # G308673149

product price:  $42.59
/ea

Key Features

Bore Dia.
1.4375 in
Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
60 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FHD-MCL-23E-AN
Zoro #
G308673149
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
1.4375 in
Outside Dia.
60 mm
Width
15 mm
Screw Size
M6
Clearance Dia.
65.6 mm
Width Tolerance
+0.076/-0.254 mm
Collar Width
15 mm
Screw Thread Size
M6
For Shaft Diameter
1 7/16 in
Clearance Diameter
65.6 mm
Bore Diameter
1 7/16 in
Mount Hole Size
6.35 mm
Collar Outside Diameter
60 mm

Details

Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
Bore Tolerance
+0.0020/+0.0005 in
Item
Mountable Shaft Collar
Screw Seating Torque
9.6 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric with Inch Bore
Component Mount Type
Face Mount Holes
Screw Material Finish
Bright
Shaft Locking Type
Clamp On
Collar Material Finish
Anodized
Included Screws
Clamp Screw
Shaft Tolerance
+0.0000/-0.0005 in
Maximum Operating Temperature
93 Degrees C
Bore Type
Round
Collar Construction
1-Piece
Minimum Operating Temperature
-40 Degrees C
Collar Material
Aluminum
Screw Location from Center
24.99 mm
Screw Material Grade
18-8 300 Series
Collar Material Grade
2024
Resistance Properties
Corrosion Resistant
Number of Screws
1
Weight
0.15902 lbs
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Screw Location (R)
24.99 mm
Threaded Mounting Hole
6.35 mm
Finish
Sulfuric Anodized and Black Anodize
Screw Finish
Bright

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 7/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Clearance Diameter 65.6 mm, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
