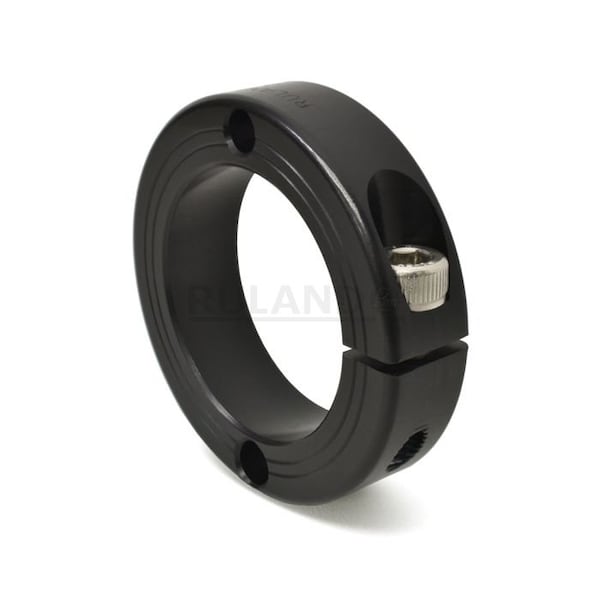

Ruland SHAFT COLLAR MOUNTABLE FHD-MCL-31E-AN - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-31E-AN

  • Zoro # G508673819

product price:  $62.99
/ea

Key Features

Bore Dia.
1.9375 in
Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
78 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHD-MCL-31E-AN
Zoro #
G508673819
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
1.9375 in
Outside Dia.
78 mm
Width
19 mm
Screw Size
M8
Clearance Dia.
84.7 mm
Width Tolerance
+0.076/-0.254 mm
Clearance Diameter
84.7 mm
Mount Hole Size
8.73 mm
Collar Outside Diameter
78 mm
Collar Width
19 mm
Bore Diameter
1 15/16 in
For Shaft Diameter
1 15/16 in
Screw Thread Size
M8

Details

Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
Bore Tolerance
+0.0020/+0.0005 in
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric with Inch Bore
Item
Mountable Shaft Collar
Screw Seating Torque
23 N-m
Minimum Operating Temperature
-40 Degrees C
Component Mount Type
Face Mount Holes
Shaft Tolerance
+0.0000/-0.0005 in
Collar Material Grade
2024
Resistance Properties
Corrosion Resistant
Included Screws
Clamp Screw
Screw Material Finish
Bright
Bore Type
Round
Screw Material Grade
18-8 300 Series
Collar Construction
1-Piece
Maximum Operating Temperature
93 Degrees C
Collar Material
Aluminum
Screw Location from Center
32 mm
Shaft Locking Type
Clamp On
Collar Material Finish
Anodized
Number of Screws
1
Finish
Sulfuric Anodized and Black Anodize
Screw Location (R)
32.00 mm
Weight
0.322865 lbs
Screw Finish
Bright
Threaded Mounting Hole
8.73 mm
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 15/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 78 mm, Inside Height to Flat Not Applicable, Clearance Diameter 84.7 mm, Collar Width 19 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
