Shop RULAND

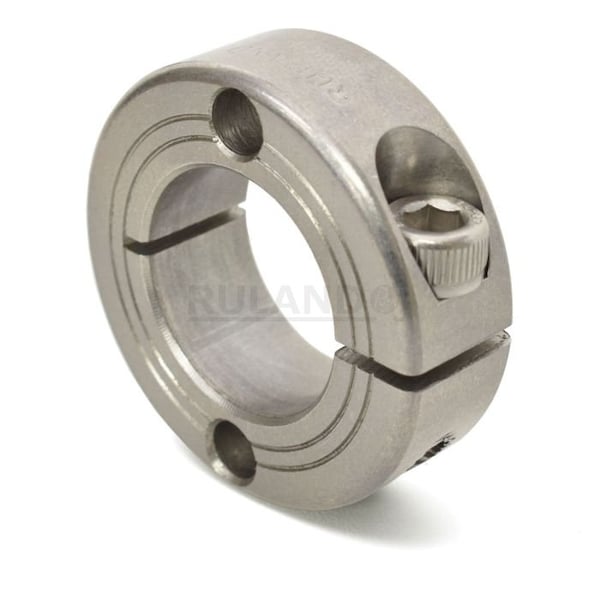

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-38-SS

  • Zoro # G908673716

product price:
$
58.59
/ea

Key Features

Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
Width Tolerance
+0.076/-0.254 mm
Screw Seating Torque
9.6 N-m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FHD-MCL-38-SS
Zoro #
G908673716
UPC #
-
Country of Origin
United States
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
Item
Mountable Shaft Collar
Screw Seating Torque
9.6 N-m
System of Measurement
Metric
Collar Material Grade
303
Collar Material Finish
Bright
Shaft Locking Type
Clamp-On
Collar Material
Stainless Steel
Shaft Tolerance
+0.000/-0.013 mm
Minimum Operating Temperature
-40 Degrees C
Screw Material Finish
Bright
Maximum Operating Temperature
176 Degrees C
Screw Location from Center
24.99 mm
Bore Type
Round
Component Mount Type
Face Mount Holes
Collar Construction
1-Piece
Included Screws
Clamp Screw
Screw Material Grade
18-8 300 Series
Resistance Properties
Corrosion-Resistant
Operating Temp. Range
-40 Degrees to 350 Degrees F
Weight
0.410917 lbs
Number of Screws
1
Number of Pieces
1
Collar Style
Clamp

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 38 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Clearance Diameter 65.6 mm, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
