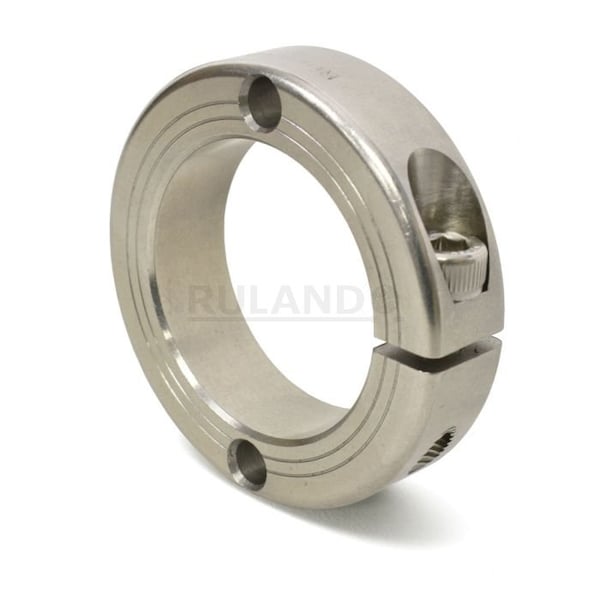

SHAFT COLLAR MOUNTABLE
Mfr # FHD-MCL-42-SS
Zoro # G108673752
product price: $106.99
/ea
Free Shipping & Returns
Key Features
Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
23 N-m
Width Tolerance
+0.076/-0.254 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FHD-MCL-42-SS
Zoro #
G108673752
UPC #
-
Country of Origin
United States
Dimensions
Width Tolerance
+0.076/-0.254 mm
For Shaft Diameter
42 mm
Mount Hole Size
8.73 mm
Clearance Diameter
80.1 mm
Bore Diameter
42 mm
Collar Width
19 mm
Screw Thread Size
M8x25
Collar Outside Diameter
73 mm
Screw Length
25 mm
Description
Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 42 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 73 mm, Inside Height to Flat Not Applicable, Clearance Diameter 80.1 mm, Collar Width 19 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion Resistant
