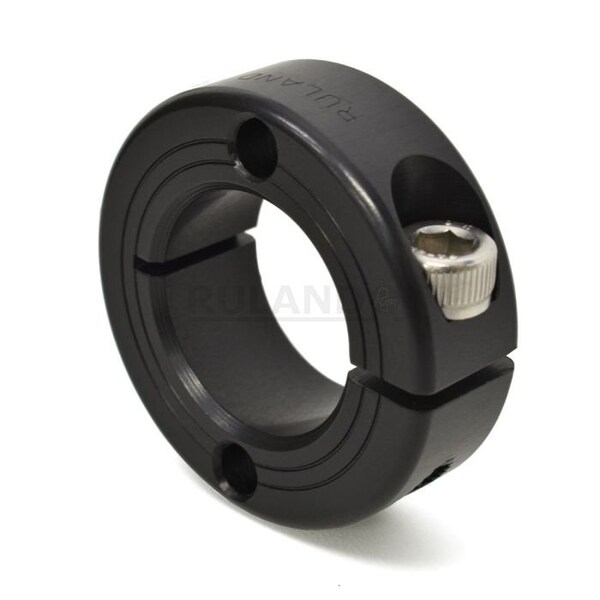

Ruland SHAFT COLLAR MOUNTABLE FHD-MCL-6E-AN - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-6E-AN

  • Zoro # G308673798

product price:  $23.79
/ea

Key Features

Bore Dia.
0.3750 in
Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
24 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FHD-MCL-6E-AN
Zoro #
G308673798
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
0.3750 in
Outside Dia.
24 mm
Width
9 mm
Screw Size
M3
Clearance Dia.
26.3 mm
Width Tolerance
+0.076/-0.254 mm
Clearance Diameter
26.3 mm
Collar Outside Diameter
24 mm
For Shaft Diameter
3/8 in
Mount Hole Size
3.26 mm
Collar Width
9 mm
Bore Diameter
3/8 in
Screw Thread Size
M3

Details

Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
Bore Tolerance
+0.0020/+0.0005 in
Item
Mountable Shaft Collar
System of Measurement
Metric with Inch Bore
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
1.1 N-m
Collar Material
Aluminum
Screw Material Grade
18-8 300 Series
Resistance Properties
Corrosion Resistant
Shaft Locking Type
Clamp On
Screw Location from Center
8.51 mm
Collar Material Finish
Anodized
Shaft Tolerance
+0.0000/-0.0005 in
Screw Material Finish
Bright
Collar Construction
1-Piece
Collar Material Grade
2024
Component Mount Type
Face Mount Holes
Included Screws
Clamp Screw
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
93 Degrees C
Bore Type
Round
Threaded Mounting Hole
3.26 mm
Screw Location (R)
8.51 mm
Number of Screws
1
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Screw Finish
Bright
Weight
0.019411 lbs
Finish
Sulfuric Anodized and Black Anodize

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 3/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 24 mm, Inside Height to Flat Not Applicable, Clearance Diameter 26.3 mm, Collar Width 9 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
