Shop RULAND

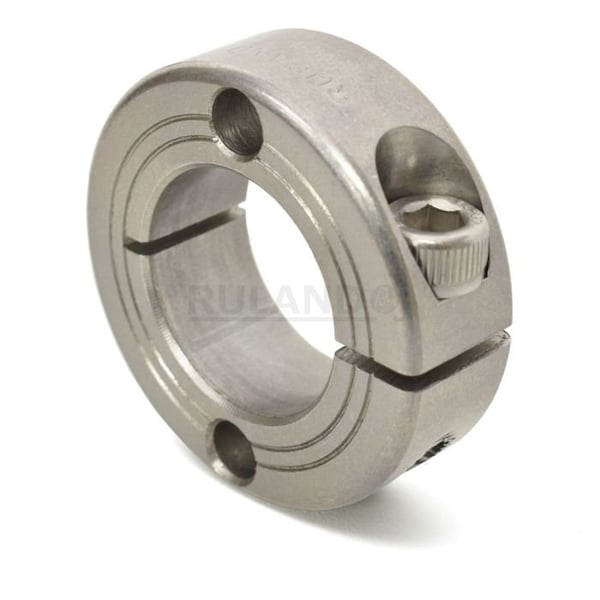

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-7E-SS

  • Zoro # G308673828

product price:  $19.19
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M4
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHD-MCL-7E-SS
Zoro #
G308673828
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M4
Width Tolerance
+0.076/-0.254 mm
Collar Width
11 mm
For Shaft Diameter
7/16 in
Mount Hole Size
4.31 mm
Collar Outside Diameter
28 mm
Bore Diameter
7/16 in
Screw Thread Size
M4
Clearance Diameter
32 mm

Details

Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric with Inch Bore
Screw Seating Torque
2.5 N-m
Item
Mountable Shaft Collar
Bore Tolerance
+0.0020/+0.0005 in
Included Screws
Clamp Screw
Screw Material Finish
Bright
Collar Construction
1-Piece
Shaft Locking Type
Clamp-On
Maximum Operating Temperature
176 Degrees C
Component Mount Type
Face Mount Holes
Shaft Tolerance
+0.0000/-0.0005 in
Bore Type
Round
Screw Material Grade
18-8 300 Series
Screw Location from Center
10.01 mm
Collar Material Grade
303
Collar Material Finish
Bright
Collar Material
Stainless Steel
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
Corrosion-Resistant
Weight
0.087235 lbs
Number of Screws
1

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 7/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 28 mm, Inside Height to Flat Not Applicable, Clearance Diameter 32 mm, Collar Width 11 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
