Shop RULAND

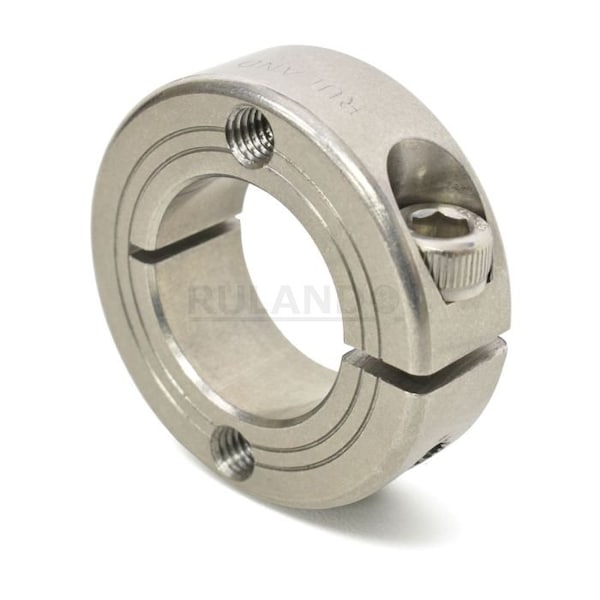

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-10-SS

  • Zoro # G308673880

product price:  $18.19
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M3 x 10
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHT-MCL-10-SS
Zoro #
G308673880
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M3 x 10
Width Tolerance
+0.076/-0.254 mm
Collar Outside Diameter
24 mm
Clearance Diameter
26.3 mm
Mount Hole Thread Size
M3
For Shaft Diameter
10 mm
Screw Thread Size
M3x10
Bore Diameter
10 mm
Collar Width
9 mm
Screw Length
10 mm

Details

Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
System of Measurement
Metric
Item
Mountable Shaft Collar
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
1.1 N-m
Bore Tolerance
+0.050/+0.012 mm
Collar Material
Stainless Steel
Screw Material Finish
Bright
Screw Material Grade
18-8 300 Series
Screw Location from Center
8.51 mm
Minimum Operating Temperature
-40 Degrees C
Bore Type
Round
Shaft Tolerance
+0.000/-0.013 mm
Component Mount Type
Face Mount Holes
Shaft Locking Type
Clamp-On
Maximum Operating Temperature
176 Degrees C
Resistance Properties
Corrosion-Resistant
Collar Material Finish
Bright
Collar Construction
1-Piece
Collar Material Grade
303
Included Screws
Clamp Screw
Number of Screws
1
Weight
0.052874 lbs

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 10 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 24 mm, Inside Height to Flat Not Applicable, Clearance Diameter 26.3 mm, Collar Width 9 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
