Shop RULAND

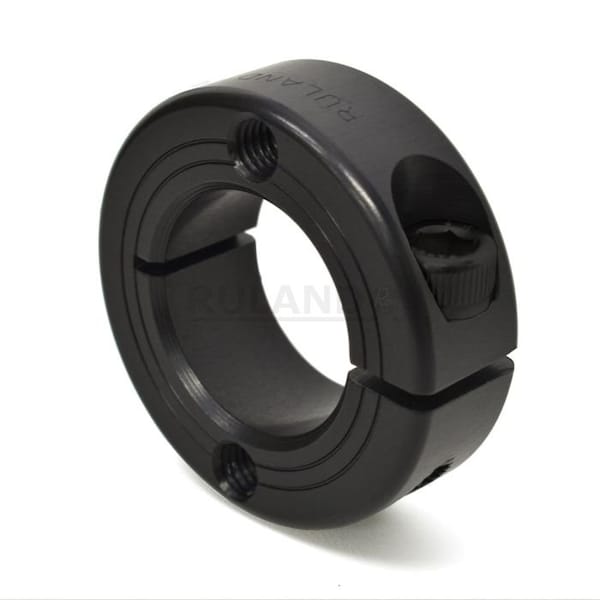

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-10E-F
  • Zoro # G108673868
product price:
$
10.79
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M5
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FHT-MCL-10E-F
Zoro #
G108673868
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric with Inch Bore
Item
Mountable Shaft Collar
Screw Seating Torque
9.5 N-m
Bore Tolerance
+0.0020/+0.0005 in
Screw Material Finish
Black Oxide
Component Mount Type
Face Mount Holes
Minimum Operating Temperature
-40 Degrees C
Collar Material
Carbon Steel
Included Screws
Clamp Screw
Maximum Operating Temperature
176 Degrees C
Shaft Tolerance
+0.0000/-0.0005 in
Screw Location from Center
12.5 mm
Shaft Locking Type
Clamp-On
Collar Material Finish
Black Oxide
Bore Type
Round
Resistance Properties
Corrosion-Resistant
Collar Material Grade
1215
Collar Construction
1-Piece
Number of Screws
1

Dimensions

Screw Size
M5
Width Tolerance
+0.076/-0.254 mm
Bore Diameter
5/8 in
Screw Thread Size
M5
Collar Width
13 mm
Collar Outside Diameter
34 mm
Mount Hole Thread Size
M5
For Shaft Diameter
5/8 in
Clearance Diameter
39.3 mm

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 5/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Clearance Diameter 39.3 mm, Collar Width 13 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide
