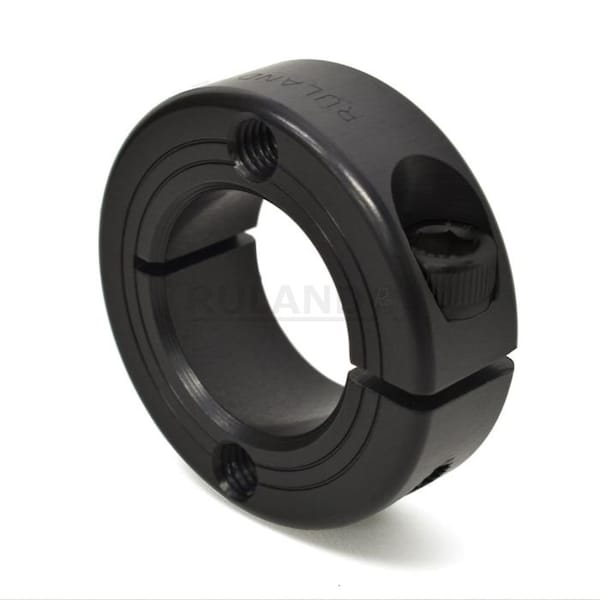

Ruland SHAFT COLLAR MOUNTABLE FHT-MCL-15E-F - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-15E-F

  • Zoro # G608675157

product price:  $12.39
/ea

Key Features

Bore Dia.
0.9375 in
Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
45 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FHT-MCL-15E-F
Zoro #
G608675157
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
0.9375 in
Outside Dia.
45 mm
Width
15 mm
Screw Size
M6
Clearance Dia.
52.1 mm
Width Tolerance
+0.076 mm / -0.254 mm
Collar Outside Diameter
45 mm
Screw Thread Size
M6
Bore Diameter
15/16 in
For Shaft Diameter
15/16 in
Collar Width
15 mm
Mount Hole Thread Size
M6
Clearance Diameter
52.1 mm

Details

Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Bore Tolerance
+0.0020 in / +0.0005 in
System of Measurement
Metric with Inch Bore
Standards
ISO 9001:2015 Certified
Item
Mountable Shaft Collar
Screw Seating Torque
16 Nm
Shaft Locking Type
Clamp On
Maximum Operating Temperature
176 Degrees C
Screw Location from Center
17.5 mm
Included Screws
Clamp Screw
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
Corrosion Resistant
Shaft Tolerance
+0.0000/-0.0005 in
Screw Material Finish
Black Oxide
Collar Construction
1-Piece
Collar Material Finish
Black Oxide
Collar Material
Carbon Steel
Bore Type
Round
Component Mount Type
Face Mount Holes
Collar Material Grade
1215
Threaded Mounting Hole
M6
Screw Location (R)
17.50 mm
Screw Finish
Black Oxide
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Number of Screws
1
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 15/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Clearance Diameter 52.1 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide
