Shop RULAND

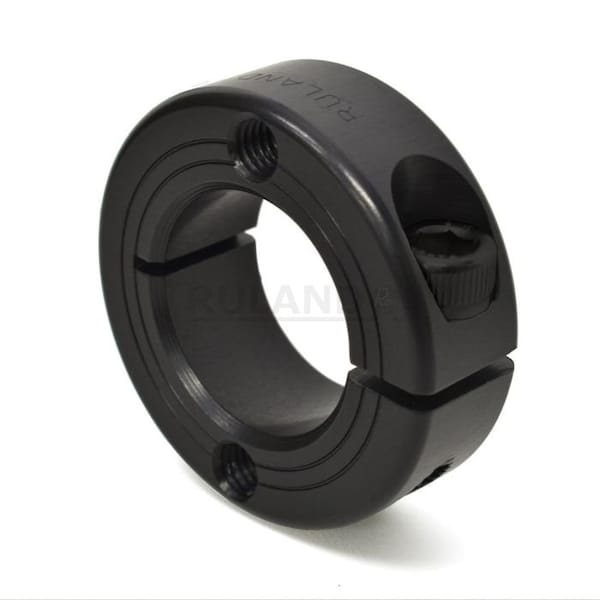

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-16E-F

  • Zoro # G208675014

product price:  $12.79
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M6
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHT-MCL-16E-F
Zoro #
G208675014
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M6
Width Tolerance
+0.076/-0.254 mm
Clearance Diameter
52.1 mm
Collar Width
15 mm
Collar Outside Diameter
45 mm
Bore Diameter
1 in
Mount Hole Thread Size
M6
For Shaft Diameter
1 in
Screw Thread Size
M6

Details

Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
System of Measurement
Metric with Inch Bore
Bore Tolerance
+0.0020/+0.0005 in
Item
Mountable Shaft Collar
Screw Seating Torque
16 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Resistance Properties
Corrosion-Resistant
Shaft Locking Type
Clamp-On
Included Screws
Clamp Screw
Collar Construction
1-Piece
Screw Material Finish
Black Oxide
Maximum Operating Temperature
176 Degrees C
Minimum Operating Temperature
-40 Degrees C
Component Mount Type
Face Mount Holes
Collar Material Grade
1215
Bore Type
Round
Shaft Tolerance
+0.0000/-0.0005 in
Collar Material Finish
Black Oxide
Collar Material
Carbon Steel
Screw Location from Center
17.5 mm
Number of Screws
1

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 in, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Clearance Diameter 52.1 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide
