SHAFT COLLAR MOUNTABLE
Mfr # FHT-MCL-17-SS
Zoro # G008675085
product price:Â
$
22.69
/ea
Key Features
Screw Material
Stainless Steel
System of Measurement
Metric
Width Tolerance
+0.076/-0.254 mm
Screw Seating Torque
5.4 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FHT-MCL-17-SS
- Zoro #
- G008675085
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- System of Measurement
- Metric
- Item
- Mountable Shaft Collar
- Screw Seating Torque
- 5.4 N-m
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Bore Tolerance
- +0.050/+0.012 mm
- Shaft Locking Type
- Clamp-On
- Collar Material
- Stainless Steel
- Collar Material Grade
- 303
- Screw Material Grade
- 18-8 300 Series
- Component Mount Type
- Face Mount Holes
- Included Screws
- Clamp Screw
- Bore Type
- Round
- Maximum Operating Temperature
- 176 Degrees C
- Shaft Tolerance
- +0.000/-0.013 mm
- Collar Material Finish
- Bright
- Resistance Properties
- Corrosion-Resistant
- Screw Location from Center
- 13.49 mm
- Minimum Operating Temperature
- -40 Degrees C
- Collar Construction
- 1-Piece
- Screw Material Finish
- Bright
Description

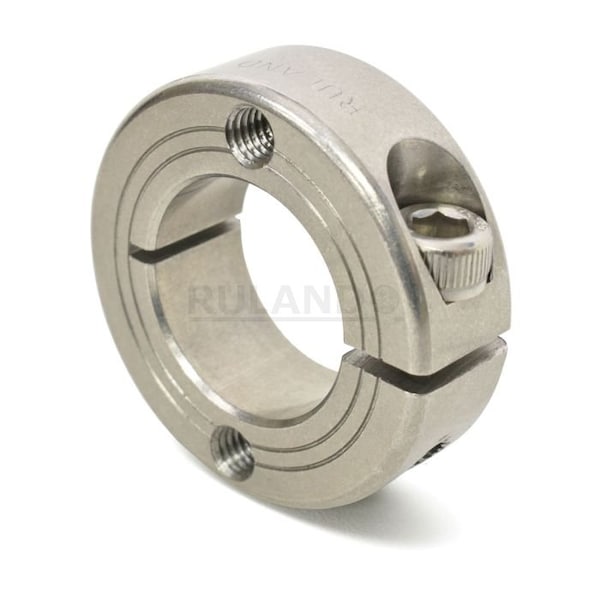

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 17 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 36 mm, Inside Height to Flat Not Applicable, Clearance Diameter 41.1 mm, Collar Width 13 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
