Shop RULAND

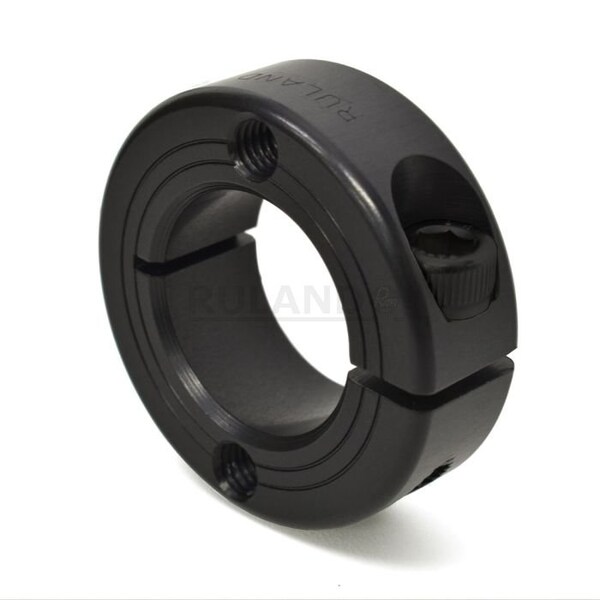

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-18-F

  • Zoro # G008675061

product price:  $10.39
/ea

Key Features

Bore Dia.
18 mm
Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
36 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHT-MCL-18-F
Zoro #
G008675061
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
18 mm
Outside Dia.
36 mm
Width
13 mm
Screw Size
M5 x 16
Clearance Dia.
41.1 mm
Width Tolerance
+0.076/-0.254 mm
Screw Thread Size
M5x16
Collar Width
13 mm
For Shaft Diameter
18 mm
Mount Hole Thread Size
M5
Clearance Diameter
41.1 mm
Bore Diameter
18 mm
Screw Length
16 mm
Collar Outside Diameter
36 mm

Details

Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
9.5 N-m
Bore Tolerance
+0.050/+0.012 mm
System of Measurement
Metric
Item
Mountable Shaft Collar
Collar Construction
1-Piece
Screw Material Finish
Black Oxide
Collar Material
Carbon Steel
Minimum Operating Temperature
-40 Degrees C
Included Screws
Clamp Screw
Collar Material Finish
Black Oxide
Screw Location from Center
13.49 mm
Collar Material Grade
1215
Maximum Operating Temperature
176 Degrees C
Resistance Properties
Corrosion-Resistant
Shaft Locking Type
Clamp-On
Shaft Tolerance
+0.000/-0.013 mm
Component Mount Type
Face Mount Holes
Bore Type
Round
Screw Finish
Black Oxide
Weight
0.153811 lbs
Number of Screws
1
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Screw Location (R)
13.49 mm
Threaded Mounting Hole
M5
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 18 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 36 mm, Inside Height to Flat Not Applicable, Clearance Diameter 41.1 mm, Collar Width 13 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide, Resistance Properties Corrosion-Resistant
