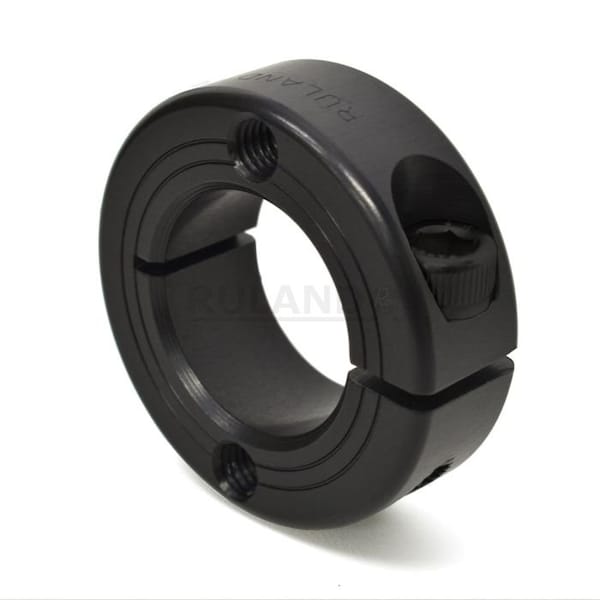

SHAFT COLLAR MOUNTABLE
Mfr # FHT-MCL-22E-F
Zoro # G308675105
product price:Â
$
19.19
/ea
Key Features
Number of Pieces
1
Collar Style
Clamp
Screw Size
M6
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FHT-MCL-22E-F
- Zoro #
- G308675105
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Clamp
- Operating Temp. Range
- -40 Degrees to 350 Degrees F
- Screw Material
- Alloy Steel
- Screw Seating Torque
- 16 N-m
- System of Measurement
- Metric with Inch Bore
- Bore Tolerance
- +0.0020/+0.0005 in
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Item
- Mountable Shaft Collar
- Collar Construction
- 1-Piece
- Bore Type
- Round
- Minimum Operating Temperature
- -40 Degrees C
- Resistance Properties
- Corrosion-Resistant
- Maximum Operating Temperature
- 176 Degrees C
- Collar Material Grade
- 1215
- Component Mount Type
- Face Mount Holes
- Collar Material Finish
- Black Oxide
- Screw Location from Center
- 23.24 mm
- Collar Material
- Carbon Steel
- Shaft Locking Type
- Clamp-On
- Screw Material Finish
- Black Oxide
- Included Screws
- Clamp Screw
- Shaft Tolerance
- +0.0000/-0.0005 in
- Number of Screws
- 1
Description
Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 3/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 57 mm, Inside Height to Flat Not Applicable, Clearance Diameter 62.4 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide
