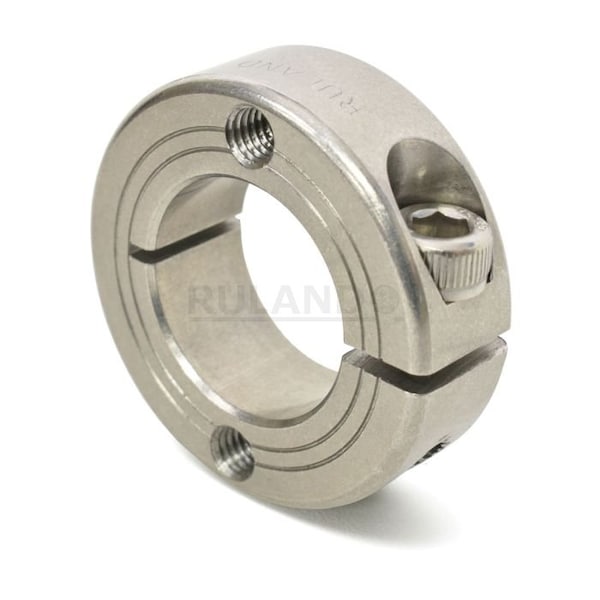

Ruland SHAFT COLLAR MOUNTABLE FHT-MCL-22E-SS - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-22E-SS

  • Zoro # G508674960

product price:  $48.59
/ea

Key Features

Bore Dia.
1.3750 in
Material
303 Stainless Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
57 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FHT-MCL-22E-SS
Zoro #
G508674960
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
1.3750 in
Outside Dia.
57 mm
Width
15 mm
Screw Size
M6
Clearance Dia.
62.4 mm
Width Tolerance
+0.076/-0.254 mm
Screw Thread Size
M6
Bore Diameter
1 3/8 in
Collar Outside Diameter
57 mm
Clearance Diameter
62.4 mm
Mount Hole Thread Size
M6
For Shaft Diameter
1 3/8 in
Collar Width
15 mm

Details

Material
303 Stainless Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
System of Measurement
Metric with Inch Bore
Screw Seating Torque
9.6 N-m
Item
Mountable Shaft Collar
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.0020/+0.0005 in
Screw Location from Center
23.24 mm
Screw Material Grade
18-8 300 Series
Bore Type
Round
Component Mount Type
Face Mount Holes
Shaft Locking Type
Clamp On
Collar Construction
1-Piece
Collar Material
Stainless Steel
Included Screws
Clamp Screw
Collar Material Finish
Bright
Collar Material Grade
303
Screw Material Finish
Bright
Maximum Operating Temperature
176 Degrees C
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
Corrosion Resistant
Shaft Tolerance
+0.0000/-0.0005 in
Finish
Bright, No Plating
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Screw Finish
Bright
Screw Location (R)
23.24 mm
Threaded Mounting Hole
M6
Number of Screws
1

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 3/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 57 mm, Inside Height to Flat Not Applicable, Clearance Diameter 62.4 mm, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
