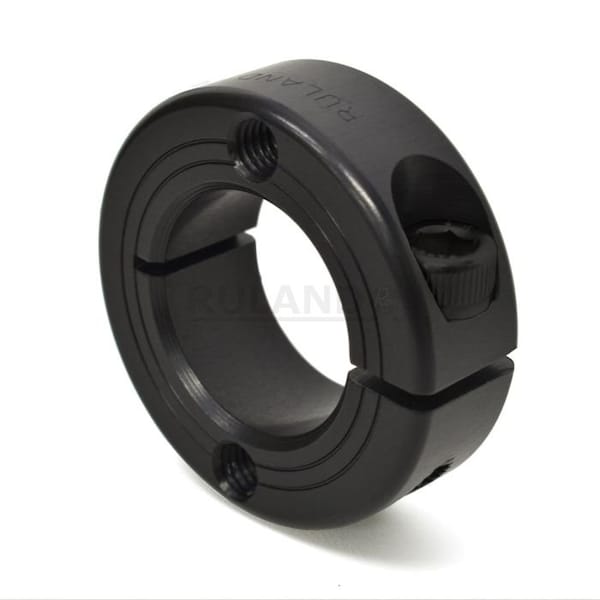

Ruland SHAFT COLLAR MOUNTABLE FHT-MCL-32-F - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-32-F

  • Zoro # G708675644

product price:  $14.49
/ea

Key Features

Screw Material
Alloy Steel
Standards
ISO 9001:2015 Certified
System of Measurement
Metric
Width Tolerance
+0.076 mm / -0.254 mm
Bore Tolerance
+0.050 mm / +0.012 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FHT-MCL-32-F
Zoro #
G708675644
UPC #
-
Country of Origin
United States

Dimensions

Width Tolerance
+0.076 mm / -0.254 mm
Clearance Diameter
59.2 mm
For Shaft Diameter
32 mm
Collar Width
15 mm
Mount Hole Thread Size
M6
Bore Diameter
32 mm
Screw Thread Size
M6x18
Collar Outside Diameter
54 mm
Screw Length
18 mm
Bore Dia.
32 mm
Screw Size
M6 x 18
Clearance Dia.
59.2 mm
Outside Dia.
54 mm
Width
15 mm

Details

Screw Material
Alloy Steel
Standards
ISO 9001:2015 Certified
Item
Mountable Shaft Collar
System of Measurement
Metric
Bore Tolerance
+0.050 mm / +0.012 mm
Screw Seating Torque
16 Nm
Collar Material Finish
Black Oxide
Screw Location from Center
21.49 mm
Collar Material
Carbon Steel
Shaft Locking Type
Clamp On
Included Screws
Clamp Screw
Resistance Properties
Corrosion Resistant
Collar Material Grade
1215
Shaft Tolerance
+0.000/-0.013 mm
Maximum Operating Temperature
176 Degrees C
Bore Type
Round
Screw Material Finish
Black Oxide
Minimum Operating Temperature
-40 Degrees C
Collar Construction
1-Piece
Component Mount Type
Face Mount Holes
Operating Temp. Range
-40 Degrees to 350 Degrees F
Weight
0.353882 lbs
Material
1215 Carbon Steel
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Number of Screws
1
Threaded Mounting Hole
M6
Screw Location (R)
21.49 mm
Screw Finish
Black Oxide
Number of Pieces
1
Collar Style
Clamp

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 32 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 54 mm, Inside Height to Flat Not Applicable, Clearance Diameter 59.2 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide, Resistance Properties Corrosion-Resistant
