Shop RULAND

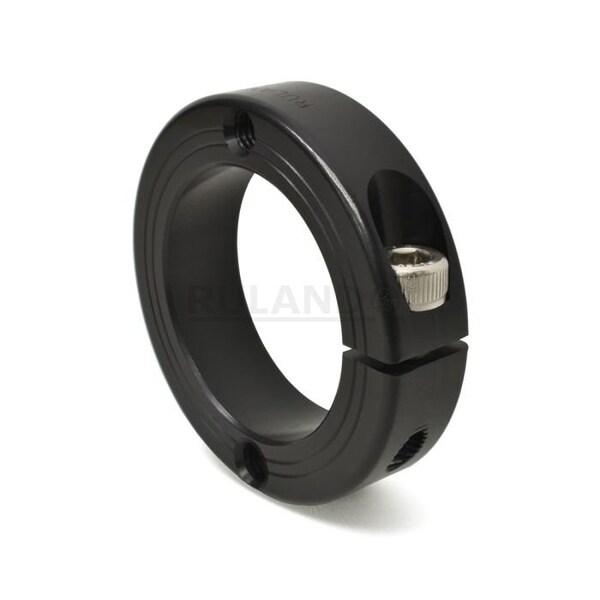

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-42-AN

  • Zoro # G208675700

product price:  $55.39
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M8 x 25
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHT-MCL-42-AN
Zoro #
G208675700
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M8 x 25
Width Tolerance
+0.076/-0.254 mm
Clearance Diameter
80.1 mm
Bore Diameter
42 mm
Mount Hole Thread Size
M8
Screw Thread Size
M8x25
Collar Outside Diameter
73 mm
For Shaft Diameter
42 mm
Screw Length
25 mm
Collar Width
19 mm

Details

Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Mountable Shaft Collar
Screw Seating Torque
23 N-m
System of Measurement
Metric
Bore Tolerance
+0.050/+0.012 mm
Included Screws
Clamp Screw
Collar Construction
1-Piece
Component Mount Type
Face Mount Holes
Shaft Locking Type
Clamp-On
Maximum Operating Temperature
93 Degrees C
Bore Type
Round
Collar Material Grade
2024
Collar Material
Aluminum
Minimum Operating Temperature
-40 Degrees C
Collar Material Finish
Anodized
Screw Location from Center
29.49 mm
Screw Material Finish
Bright
Shaft Tolerance
+0.000/-0.013 mm
Screw Material Grade
18-8 300 Series
Resistance Properties
Corrosion-Resistant
Weight
0.324147 lbs
Number of Screws
1

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 42 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 73 mm, Inside Height to Flat Not Applicable, Clearance Diameter 80.1 mm, Collar Width 19 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
