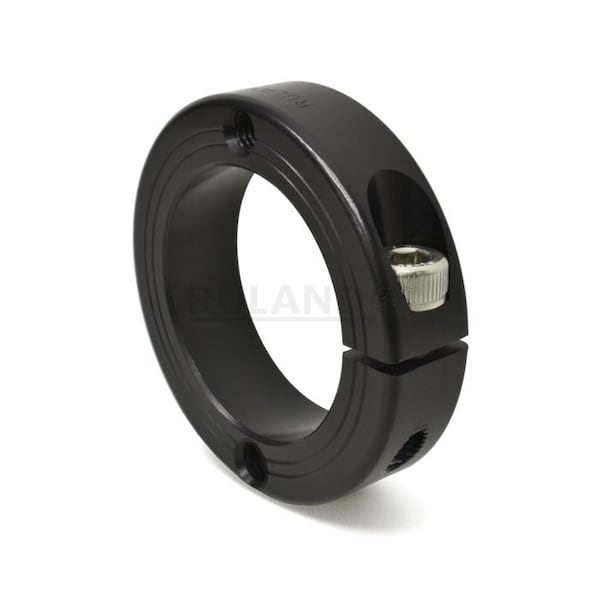

Ruland SHAFT COLLAR MOUNTABLE FHT-MCL-50-AN - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-50-AN

  • Zoro # G708675729

product price:  $83.15
/ea

Key Features

Bore Dia.
50 mm
Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
78 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHT-MCL-50-AN
Zoro #
G708675729
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
50 mm
Outside Dia.
78 mm
Width
19 mm
Screw Size
M8 x 25
Clearance Dia.
84.7 mm
Width Tolerance
+0.076/-0.254 mm
Bore Diameter
50 mm
Mount Hole Thread Size
M8
For Shaft Diameter
50 mm
Collar Width
19 mm
Screw Length
25 mm
Collar Outside Diameter
78 mm
Clearance Diameter
84.7 mm
Screw Thread Size
M8x25

Details

Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
18-8 300 Series Stainless Steel
Item
Mountable Shaft Collar
Screw Seating Torque
23 N-m
System of Measurement
Metric
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
Screw Material Grade
18-8 300 Series
Maximum Operating Temperature
93 Degrees C
Included Screws
Clamp Screw
Collar Material Grade
2024
Shaft Tolerance
+0.000/-0.013 mm
Bore Type
Round
Screw Location from Center
32 mm
Minimum Operating Temperature
-40 Degrees C
Collar Construction
1-Piece
Resistance Properties
Corrosion Resistant
Shaft Locking Type
Clamp On
Screw Material Finish
Bright
Collar Material
Aluminum
Collar Material Finish
Anodized
Component Mount Type
Face Mount Holes
Screw Location (R)
32.00 mm
Finish
Sulfuric Anodized and Black Anodize
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Number of Screws
1
Screw Finish
Bright
Weight
0.32076 lbs
Threaded Mounting Hole
M8

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 50 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 78 mm, Inside Height to Flat Not Applicable, Clearance Diameter 84.7 mm, Collar Width 19 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
