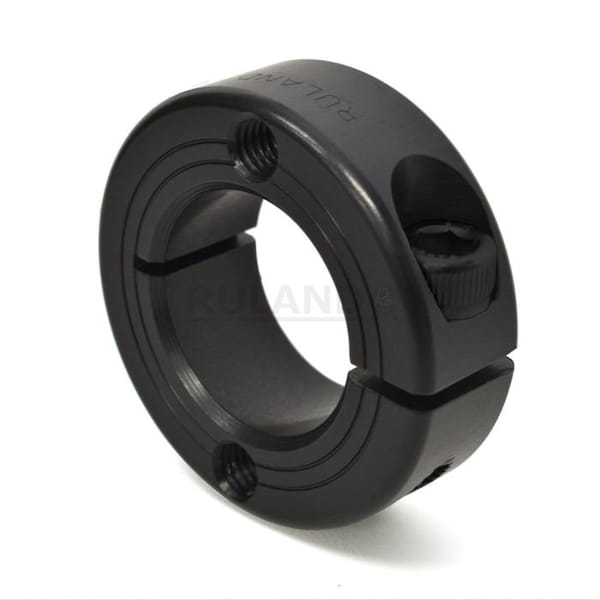

SHAFT COLLAR MOUNTABLE
- Mfr # FHT-MCL-7E-F
- Zoro # G308675808
product price:Â
$
9.59
/ea
Key Features
Number of Pieces
1
Collar Style
Clamp
Screw Size
M4
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FHT-MCL-7E-F
- Zoro #
- G308675808
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Clamp
- Operating Temp. Range
- -40 Degrees to 350 Degrees F
- Screw Material
- Alloy Steel
- Bore Tolerance
- +0.0020/+0.0005 in
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- System of Measurement
- Metric with Inch Bore
- Item
- Mountable Shaft Collar
- Screw Seating Torque
- 4.6 N-m
- Bore Type
- Round
- Component Mount Type
- Face Mount Holes
- Collar Material Finish
- Black Oxide
- Shaft Tolerance
- +0.0000/-0.0005 in
- Maximum Operating Temperature
- 176 Degrees C
- Collar Material Grade
- 1215
- Screw Material Finish
- Black Oxide
- Screw Location from Center
- 10.01 mm
- Shaft Locking Type
- Clamp-On
- Minimum Operating Temperature
- -40 Degrees C
- Collar Construction
- 1-Piece
- Resistance Properties
- Corrosion-Resistant
- Included Screws
- Clamp Screw
- Collar Material
- Carbon Steel
- Number of Screws
- 1
Dimensions
- Screw Size
- M4
- Width Tolerance
- +0.076/-0.254 mm
- Collar Outside Diameter
- 28 mm
- Bore Diameter
- 7/16 in
- Mount Hole Thread Size
- M4
- Collar Width
- 11 mm
- Clearance Diameter
- 32 mm
- Screw Thread Size
- M4
- For Shaft Diameter
- 7/16 in
Description
Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 7/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 28 mm, Inside Height to Flat Not Applicable, Clearance Diameter 32 mm, Collar Width 11 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide
