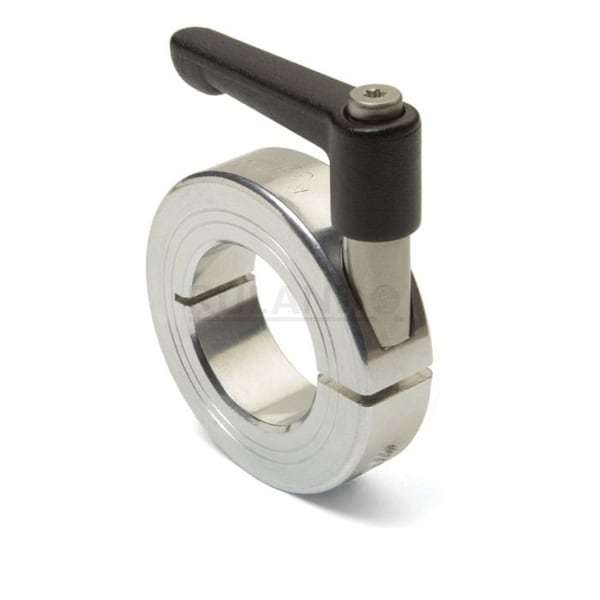

SHAFT COLLAR QUICK CLAMPING
- Mfr # LV-MCL-12-A
- Zoro # G808675834
product price:Â
$
31.39
/ea
Key Features
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M4
Screw Material
Stainless Steel
Screw Seating Torque
4.6 N-m
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LV-MCL-12-A
- Zoro #
- G808675834
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Shaft Collar with Clamping Lever
- Screw Material
- Stainless Steel
- Item
- Quick Clamping Shaft Collar
- Screw Seating Torque
- 4.6 N-m
- Bore Tolerance
- +0.050/+0.012 mm
- System of Measurement
- Metric
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Handle Color
- Black
- Collar Construction
- 1-Piece
- Handle Material
- Zinc
- Shaft Locking Type
- Clamp-On
- Handle Material Finish
- Powder Coated
- Collar Material Grade
- 2024
- Collar Material Finish
- Bright
- Shaft Tolerance
- +0.000/-0.013 mm
- Screw Location from Center
- 10.01 mm
- Collar Material
- Aluminum
- Bore Type
- Round
- Screw Material Grade
- 303
- Center to Lever Top
- 32.2 mm
- Lever Part Number
- LF30-CL-M4: 12-ZS
- Number of Screws
- 1
- Weight
- 0.0938 lbs
Dimensions
- Screw Size
- M4
- Width Tolerance
- +0.076/-0.254 mm
- For Shaft Diameter
- 12 mm
- Collar Width
- 13 mm
- Bore Diameter
- 12 mm
- Lever Length
- 30 mm
- Collar Outside Diameter
- 28 mm
- Screw Thread Size
- M4
- Lever Height
- 32 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 12 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 28 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 32.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 4.6 N-m, Bore Tolerance +0.050/+0.012 mm
