Shop RULAND

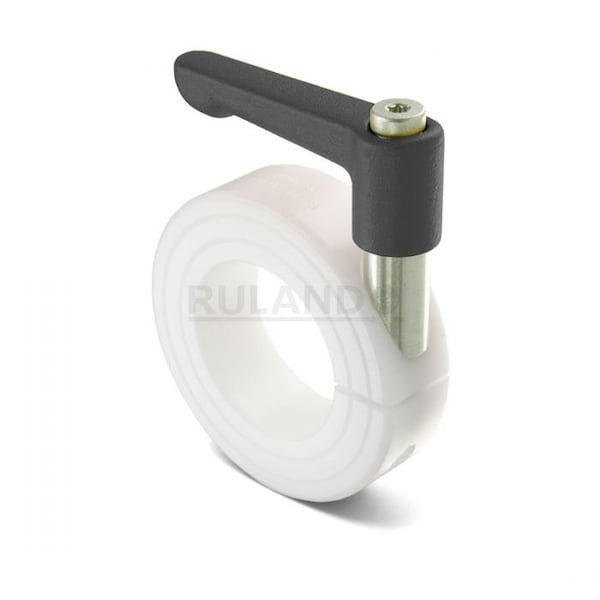

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-MCL-16-P

  • Zoro # G808677227

product price:  $38.29
/ea

Key Features

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M5
Screw Material
Stainless Steel
System of Measurement
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LV-MCL-16-P
Zoro #
G808677227
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M5
Width Tolerance
+0.076/-0.254 mm
Bore Diameter
16 mm
Screw Thread Size
M5
Collar Width
13 mm
For Shaft Diameter
16 mm
Lever Length
30 mm
Lever Height
35 mm
Collar Outside Diameter
34 mm

Details

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
System of Measurement
Metric
Screw Seating Torque
1.7 N-m
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Quick Clamping Shaft Collar
Bore Tolerance
+0.050/+0.012 mm
Handle Material Finish
Powder Coated
Collar Construction
1-Piece
Lever Part Number
LF30-CL-M5: 15-ZS
Collar Material Finish
Plain
Center to Lever Top
35.2 mm
Screw Material Grade
303
Handle Material
Zinc
Bore Type
Round
Collar Material Grade
Acetal
Handle Color
Black
Shaft Tolerance
+0.000/-0.013 mm
Collar Material
Plastic
Resistance Properties
Corrosion-Resistant
Shaft Locking Type
Clamp-On
Screw Location from Center
12.5 mm
Number of Screws
1
Weight
0.0962 lbs

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Plastic, Keyway Width Not Applicable, Collar Material Grade Acetal, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 1.7 N-m
