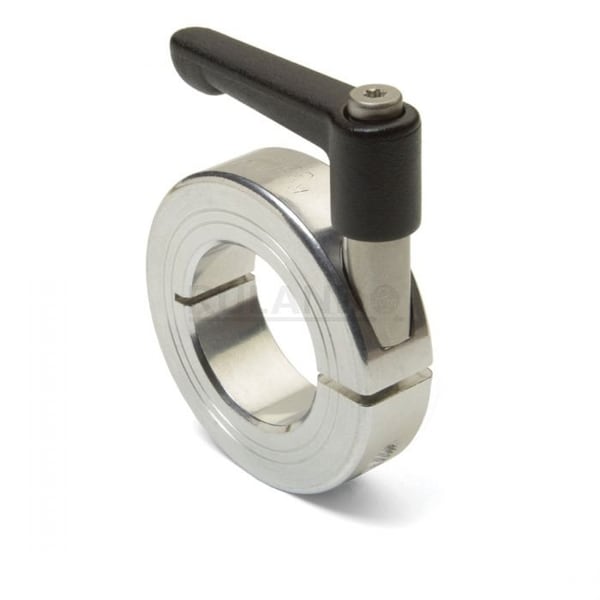

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-MCL-18-A
Zoro # G908677226
product price:Â
$
36.29
/ea
Key Features
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
9.5 N-m
System of Measurement
Metric
Bore Tolerance
+0.050/+0.012 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LV-MCL-18-A
- Zoro #
- G908677226
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Screw Seating Torque
- 9.5 N-m
- System of Measurement
- Metric
- Item
- Quick Clamping Shaft Collar
- Bore Tolerance
- +0.050/+0.012 mm
- Lever Part Number
- LF30-CL-M5: 15-ZS
- Center to Lever Top
- 35.2 mm
- Collar Material
- Aluminum
- Handle Material Finish
- Powder Coated
- Handle Material
- Zinc
- Screw Material Grade
- 303
- Shaft Tolerance
- +0.000/-0.013 mm
- Shaft Locking Type
- Clamp-On
- Collar Material Finish
- Bright
- Collar Material Grade
- 2024
- Collar Construction
- 1-Piece
- Screw Location from Center
- 13.49 mm
- Bore Type
- Round
- Handle Color
- Black
- Weight
- 0.1247 lbs
- Number of Screws
- 1
- Collar Style
- Shaft Collar with Clamping Lever
- Number of Pieces
- 1
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 18 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 36 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 9.5 N-m, Bore Tolerance +0.050/+0.012 mm
