Shop RULAND

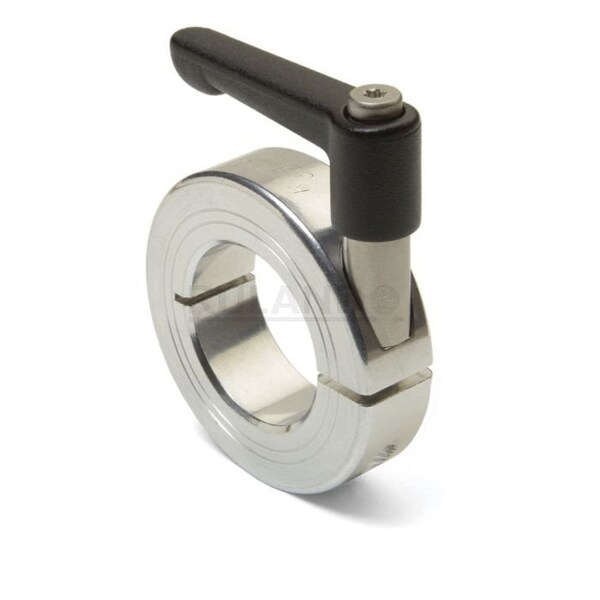

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-MCL-19-A
  • Zoro # G908677295
product price:
$
39.39
/ea

Key Features

Screw Material
Stainless Steel
System of Measurement
Metric
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Width Tolerance
+0.076/-0.254 mm
Screw Seating Torque
16 N-m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LV-MCL-19-A
Zoro #
G908677295
UPC #
-
Country of Origin
United States
Screw Material
Stainless Steel
Item
Quick Clamping Shaft Collar
System of Measurement
Metric
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
16 N-m
Bore Tolerance
+0.050/+0.012 mm
Collar Material
Aluminum
Collar Material Grade
2024
Lever Part Number
LF45-CL-M6: 18-ZS
Handle Color
Black
Bore Type
Round
Center to Lever Top
38.8 mm
Handle Material Finish
Powder Coated
Shaft Tolerance
+0.000/-0.013 mm
Screw Location from Center
14.73 mm
Shaft Locking Type
Clamp-On
Handle Material
Zinc
Collar Construction
1-Piece
Collar Material Finish
Bright
Screw Material Grade
303
Weight
0.1794 lbs
Number of Screws
1
Collar Style
Shaft Collar with Clamping Lever
Number of Pieces
1

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 19 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
