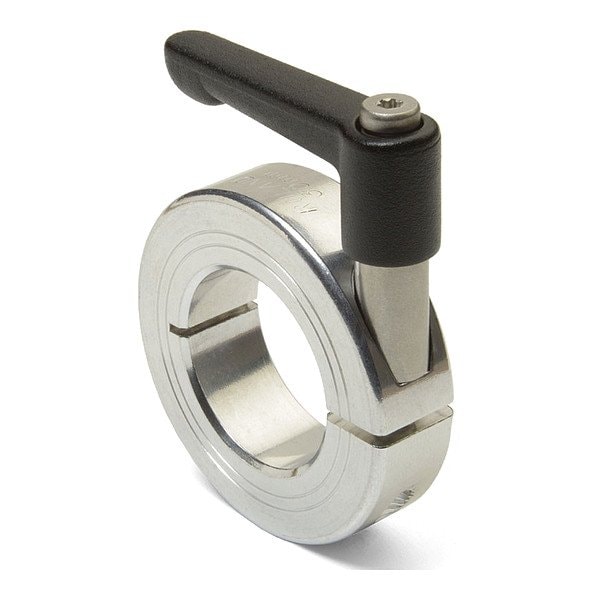

SHAFT COLLAR QUICK CLAMPING
- Mfr # LV-MCL-22-A
- Zoro # G308677000
product price:Â
$
37.19
/ea
Key Features
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
Screw Seating Torque
16 N-m
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LV-MCL-22-A
- Zoro #
- G308677000
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Shaft Collar with Clamping Lever
- Screw Material
- Stainless Steel
- Screw Seating Torque
- 16 N-m
- System of Measurement
- Metric
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Bore Tolerance
- +0.050/+0.012 mm
- Item
- Quick Clamping Shaft Collar
- Collar Material
- Aluminum
- Collar Material Grade
- 2024
- Collar Material Finish
- Bright
- Shaft Locking Type
- Clamp-On
- Lever Part Number
- LF45-CL-M6: 18-ZS
- Collar Construction
- 1-Piece
- Bore Type
- Round
- Screw Location from Center
- 16 mm
- Center to Lever Top
- 38.8 mm
- Screw Material Grade
- 303
- Handle Color
- Black
- Shaft Tolerance
- +0.000/-0.013 mm
- Handle Material Finish
- Powder Coated
- Handle Material
- Zinc
- Weight
- 0.1823 lbs
- Number of Screws
- 1
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 22 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 42 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
