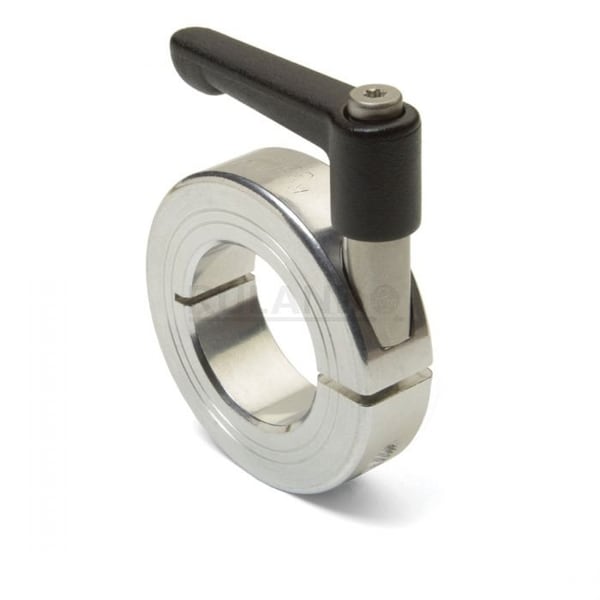

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-MCL-23-A
Zoro # G408677115
product price:Â
$
37.99
/ea
Key Features
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
System of Measurement
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LV-MCL-23-A
- Zoro #
- G408677115
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Shaft Collar with Clamping Lever
- Screw Material
- Stainless Steel
- System of Measurement
- Metric
- Bore Tolerance
- +0.050/+0.012 mm
- Item
- Quick Clamping Shaft Collar
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Screw Seating Torque
- 16 N-m
- Bore Type
- Round
- Handle Color
- Black
- Screw Material Grade
- 303
- Center to Lever Top
- 38.8 mm
- Shaft Tolerance
- +0.000/-0.013 mm
- Shaft Locking Type
- Clamp-On
- Handle Material Finish
- Powder Coated
- Collar Material Finish
- Bright
- Collar Construction
- 1-Piece
- Handle Material
- Zinc
- Screw Location from Center
- 17.5 mm
- Collar Material Grade
- 2024
- Lever Part Number
- LF45-CL-M6: 18-ZS
- Collar Material
- Aluminum
- Weight
- 0.1973 lbs
- Number of Screws
- 1
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 23 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
