Shop RULAND

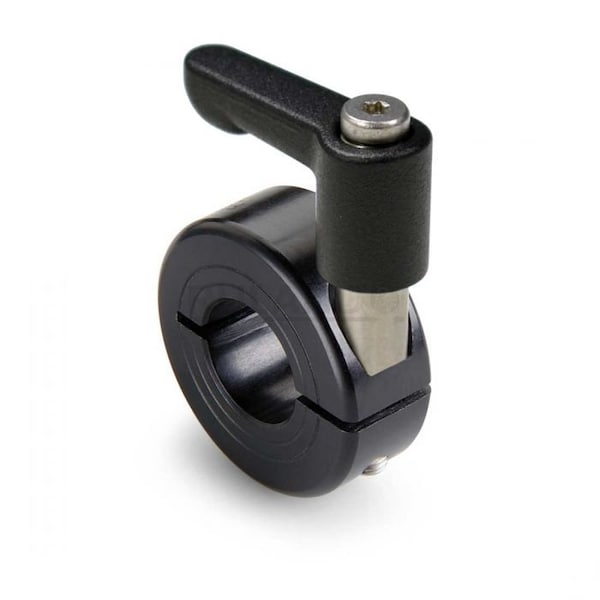

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-MCL-24E-AN

  • Zoro # G808678163

product price:
$
63.79
/ea

Key Features

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LV-MCL-24E-AN
Zoro #
G808678163
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.0020/+0.0005 in
Screw Seating Torque
9.6 N-m
Item
Quick Clamping Shaft Collar
System of Measurement
Metric with Inch Bore
Shaft Tolerance
+0.0000/-0.0005 in
Collar Material
Aluminum
Screw Location from Center
24.99 mm
Collar Construction
1-Piece
Handle Material
Zinc
Handle Color
Black
Lever Part Number
LF45-CL-M6: 20-ZS
Bore Type
Round
Handle Material Finish
Powder Coated
Collar Material Finish
Anodized
Center to Lever Top
40.8 mm
Shaft Locking Type
Clamp-On
Collar Material Grade
2024
Resistance Properties
Corrosion-Resistant
Screw Material Grade
303
Weight
0.2468 lbs
Number of Screws
1

Description

Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
