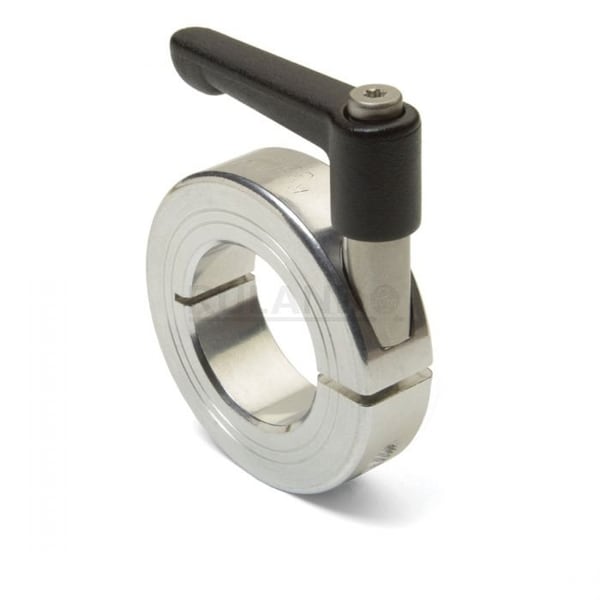

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-MCL-25-A
Zoro # G808678224
product price:Â
$
40.39
/ea
Key Features
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
Width Tolerance
+0.076/-0.254 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LV-MCL-25-A
- Zoro #
- G808678224
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Shaft Collar with Clamping Lever
- Screw Material
- Stainless Steel
- Screw Seating Torque
- 16 N-m
- Bore Tolerance
- +0.050/+0.012 mm
- Item
- Quick Clamping Shaft Collar
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- System of Measurement
- Metric
- Lever Part Number
- LF45-CL-M6: 18-ZS
- Handle Material Finish
- Powder Coated
- Handle Color
- Black
- Handle Material
- Zinc
- Screw Location from Center
- 17.5 mm
- Collar Construction
- 1-Piece
- Center to Lever Top
- 38.8 mm
- Screw Material Grade
- 303
- Bore Type
- Round
- Shaft Locking Type
- Clamp-On
- Collar Material Finish
- Bright
- Shaft Tolerance
- +0.000/-0.013 mm
- Collar Material
- Aluminum
- Collar Material Grade
- 2024
- Number of Screws
- 1
- Weight
- 0.1905 lbs
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 25 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
