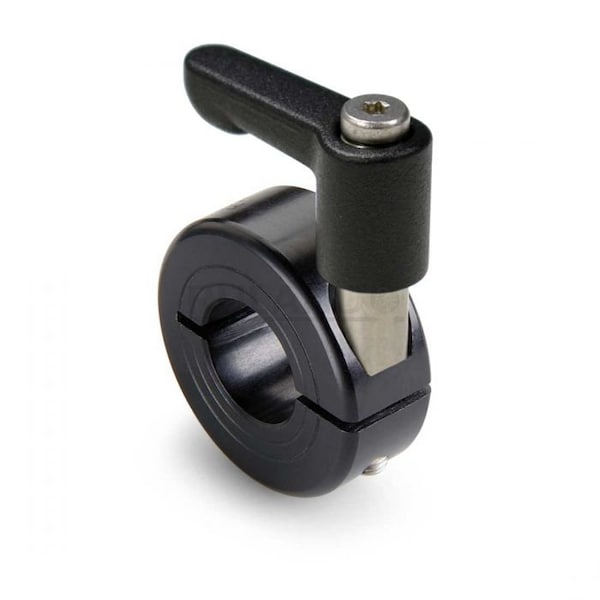

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-MCL-26-AN
Zoro # G708677976
product price:Â $56.19
/eaKey Features
Bore Dia.
26 mm
Material
Aluminum
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Outside Dia.
48 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
LV-MCL-26-AN
Zoro #
G708677976
UPC #
-
Country of Origin
United States
Dimensions
Bore Dia.
26 mm
Outside Dia.
48 mm
Width
15 mm
Screw Size
M6
Width Tolerance
+0.076/-0.254 mm
For Shaft Diameter
26 mm
Lever Height
38.5 mm
Collar Outside Diameter
48 mm
Collar Width
15 mm
Screw Thread Size
M6
Bore Diameter
26 mm
Lever Length
45 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 26 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 48 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.6 N-m
