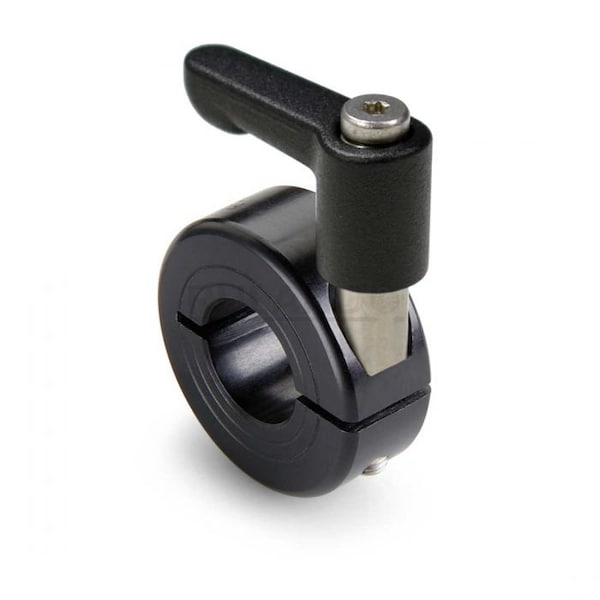

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-MCL-31E-AN
Zoro # G308678007
product price:Â $103.99
/ea
Free Shipping & Returns
Key Features
Bore Dia.
1.9375 in
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Outside Dia.
78 mm
Dimension Type
Metric with Inch Bore
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
LV-MCL-31E-AN
Zoro #
G308678007
UPC #
-
Country of Origin
United States
Dimensions
Bore Dia.
1.9375 in
Outside Dia.
78 mm
Dimension Type
Metric with Inch Bore
Width
19 mm
Screw Size
M8
Width Tolerance
+0.076/-0.254 mm
Screw Thread Size
M8
Lever Height
57 mm
Collar Outside Diameter
78 mm
Bore Diameter
1 15/16 in
For Shaft Diameter
1 15/16 in
Collar Width
19 mm
Lever Length
63 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 15/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 78 mm, Inside Height to Flat Not Applicable, Collar Width 19 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 65.3 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
