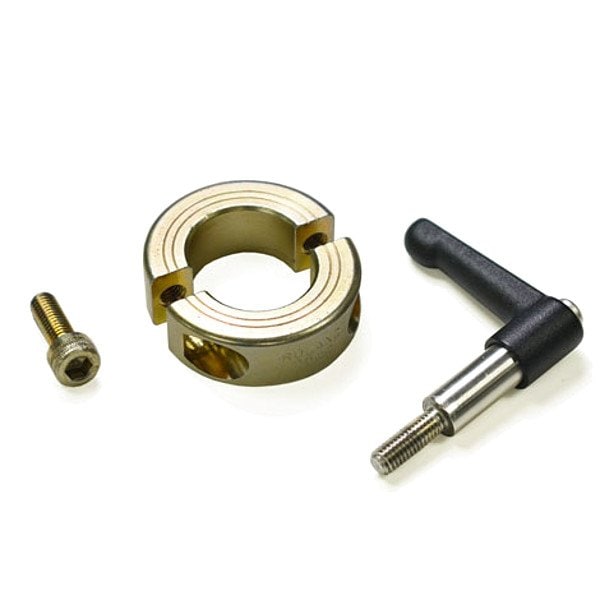

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-MSP-12-FZ
Zoro # G908678858
product price: $36.99
/eaKey Features
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric
Bore Tolerance
+0.050/+0.012 mm
Center to Lever Top
32.2 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LV-MSP-12-FZ
Zoro #
G908678858
UPC #
-
Country of Origin
United States
Dimensions
Collar Outside Diameter
28 mm
Screw Thread Size
M4
For Shaft Diameter
12 mm
Bore Diameter
12 mm
Collar Width
13 mm
Lever Length
30 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 12 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 28 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 32.2 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion Resistant, Bore Tolerance +0.050/+0.012 mm
