Shop RULAND

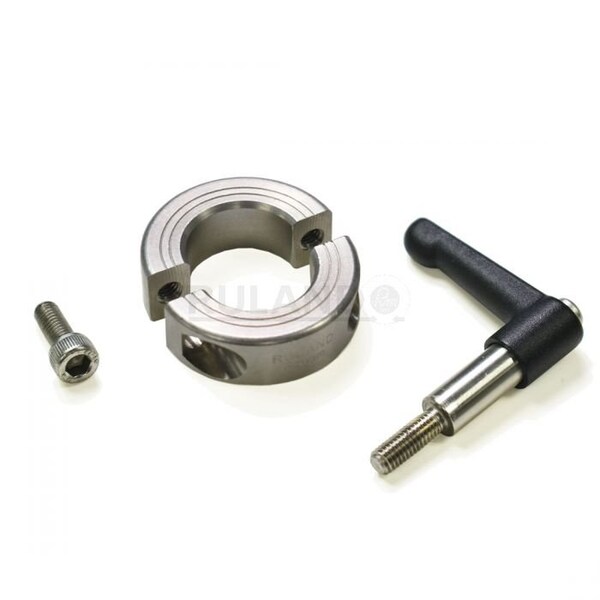

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-MSP-16-SS

  • Zoro # G908673792

product price:  $52.29
/ea

Key Features

Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
Screw Seating Torque
5.4 N-m
System of Measurement
Metric
Width Tolerance
+0.076/-0.254 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LV-MSP-16-SS
Zoro #
G908673792
UPC #
-
Country of Origin
United States

Dimensions

Width Tolerance
+0.076/-0.254 mm
Screw Thread Size
M5
Bore Diameter
16 mm
Collar Width
13 mm
Lever Length
30 mm
For Shaft Diameter
16 mm
Collar Outside Diameter
34 mm
Lever Height
35 mm
Screw Size
M5

Details

Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
Screw Seating Torque
5.4 N-m
Item
Quick Clamping Shaft Collar
System of Measurement
Metric
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Material Grade
303
Collar Material Finish
Bright
Bore Type
Round
Shaft Tolerance
+0.000/-0.013 mm
Lever Part Number
LF30-CL-M5: 15-ZS
Screw Location from Center
12.5 mm
Collar Material Grade
303
Handle Material
Zinc
Collar Construction
2-Piece
Shaft Locking Type
Clamp-On
Collar Material
Stainless Steel
Handle Color
Black
Center to Lever Top
35.2 mm
Handle Material Finish
Powder Coated
Resistance Properties
Corrosion-Resistant
Number of Screws
2
Weight
0.2347 lbs
Collar Style
Shaft Collar with Clamping Lever
Number of Pieces
2

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 5.4 N-m
