Shop RULAND

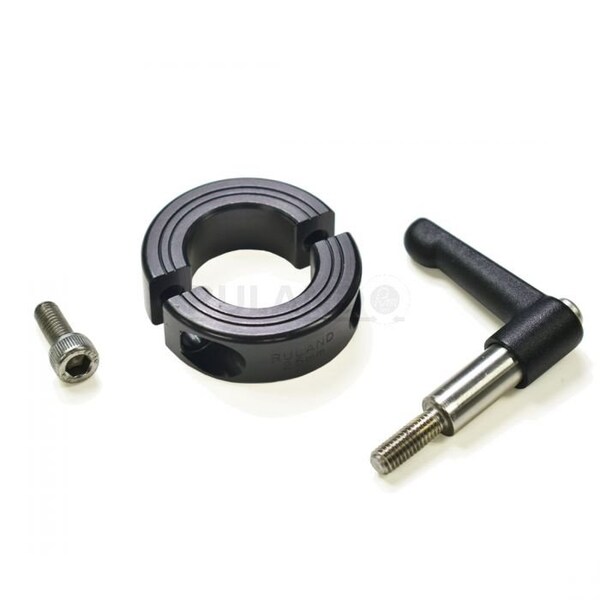

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-MSP-24E-AN

  • Zoro # G908673884

product price:
$
64.29
/ea

Key Features

Screw Material
Stainless Steel
Bore Tolerance
+0.0020/+0.0005 in
System of Measurement
Metric with Inch Bore
Screw Seating Torque
9.6 N-m
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LV-MSP-24E-AN
Zoro #
G908673884
UPC #
-
Country of Origin
United States

Dimensions

Width Tolerance
+0.076/-0.254 mm
For Shaft Diameter
1 1/2 in
Bore Diameter
1 1/2 in
Collar Width
15 mm
Collar Outside Diameter
60 mm
Screw Thread Size
M6
Lever Height
40.5 mm
Lever Length
45 mm
Screw Size
M6

Details

Screw Material
Stainless Steel
Bore Tolerance
+0.0020/+0.0005 in
System of Measurement
Metric with Inch Bore
Screw Seating Torque
9.6 N-m
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Quick Clamping Shaft Collar
Resistance Properties
Corrosion-Resistant
Lever Part Number
LF45-CL-M6: 20-ZS
Screw Location from Center
24.99 mm
Screw Material Grade
303
Handle Material
Zinc
Collar Material Grade
2024
Bore Type
Round
Center to Lever Top
40.8 mm
Collar Construction
2-Piece
Handle Material Finish
Powder Coated
Shaft Tolerance
+0.0000/-0.0005 in
Collar Material
Aluminum
Handle Color
Black
Collar Material Finish
Anodized
Shaft Locking Type
Clamp-On
Collar Style
Shaft Collar with Clamping Lever
Weight
0.2386 lbs
Number of Pieces
2
Number of Screws
2

Description

Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
