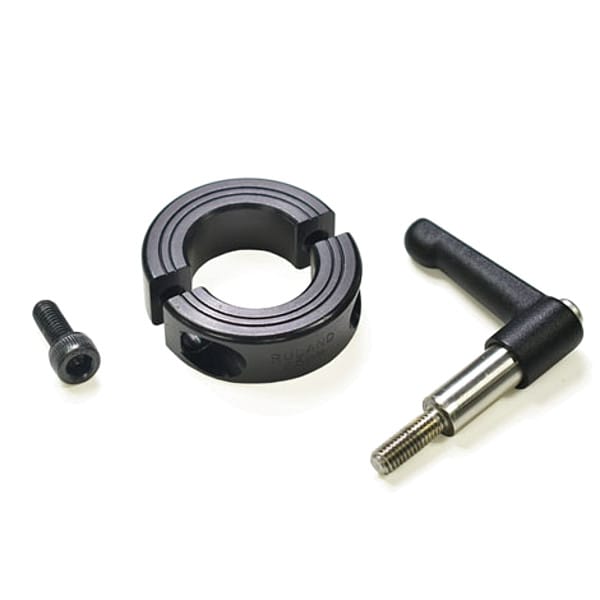

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-MSP-42-F
Zoro # G208675762
product price:Â
$
62.39
/ea
Key Features
Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M8
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LV-MSP-42-F
- Zoro #
- G208675762
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 2
- Collar Style
- Shaft Collar with Clamping Lever
- Screw Material
- Stainless Steel
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- System of Measurement
- Metric
- Screw Seating Torque
- 39 N-m
- Bore Tolerance
- +0.050/+0.012 mm
- Item
- Quick Clamping Shaft Collar
- Handle Color
- Black
- Center to Lever Top
- 60.3 mm
- Collar Material Finish
- Black Oxide
- Collar Material Grade
- 1215
- Shaft Locking Type
- Clamp-On
- Bore Type
- Round
- Shaft Tolerance
- +0.000/-0.013 mm
- Handle Material
- Zinc
- Screw Material Grade
- 303
- Collar Construction
- 2-Piece
- Collar Material
- Carbon Steel
- Lever Part Number
- LF63-CL-M8: 27.5-ZS
- Handle Material Finish
- Powder Coated
- Screw Location from Center
- 29.49 mm
- Number of Screws
- 2
- Weight
- 1.020173 lbs
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 42 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 73 mm, Inside Height to Flat Not Applicable, Collar Width 19 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 60.3 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Screw Seating Torque 39 N-m, Bore Tolerance +0.050/+0.012 mm
