Shop RULAND

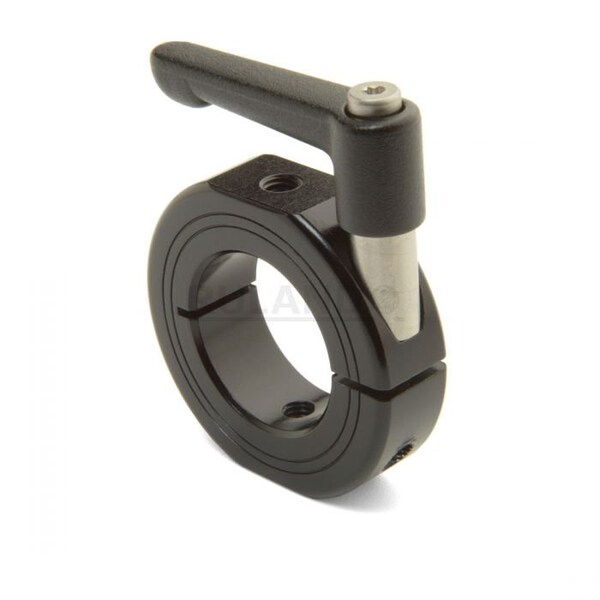

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-OF-MCL-10E-AN

  • Zoro # G508675851

product price:
$
57.49
/ea

Key Features

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M5
Screw Material
Stainless Steel
Screw Seating Torque
5.4 N-m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LV-OF-MCL-10E-AN
Zoro #
G508675851
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
Screw Seating Torque
5.4 N-m
Distance Across Flats
30 mm
System of Measurement
Metric with Inch Bore
Bore Tolerance
+0.0020/+0.0005 in
Item
Quick Clamping Shaft Collar
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Collar Material Finish
Anodized
Collar Material
Aluminum
Screw Location from Center
12.5 mm
Center to Lever Top
35.2 mm
Screw Material Grade
303
Handle Material Finish
Powder Coated
Shaft Tolerance
+0.0000/-0.0005 in
Collar Construction
1-Piece
Flat to Bore
7 mm
Handle Material
Zinc
Component Mount Type
Outer Diameter Holes with Wrench Flats
Resistance Properties
Corrosion-Resistant
Lever Part Number
LF30-CL-M5: 15-ZS
Bore Type
Round
Handle Color
Black
Shaft Locking Type
Clamp-On
Collar Material Grade
2024
Weight
0.1169 lbs
Number of Screws
1

Description

Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 5/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
