Shop RULAND

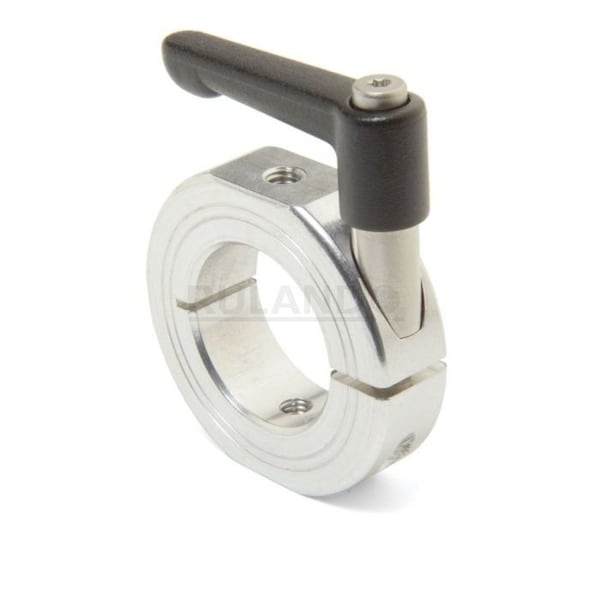

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-OF-MCL-12-A

  • Zoro # G008675856

product price:
$
36.99
/ea

Key Features

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M4
Screw Material
Stainless Steel
System of Measurement
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LV-OF-MCL-12-A
Zoro #
G008675856
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
System of Measurement
Metric
Item
Quick Clamping Shaft Collar
Screw Seating Torque
4.6 N-m
Bore Tolerance
+0.050/+0.012 mm
Distance Across Flats
24 mm
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Type
Round
Shaft Tolerance
+0.000/-0.013 mm
Handle Color
Black
Handle Material
Zinc
Collar Material
Aluminum
Screw Location from Center
10.01 mm
Screw Material Grade
303
Lever Part Number
LF30-CL-M4: 12-ZS
Component Mount Type
Outer Diameter Holes with Wrench Flats
Handle Material Finish
Powder Coated
Center to Lever Top
32.2 mm
Collar Material Finish
Bright
Flat to Bore
6 mm
Collar Material Grade
2024
Shaft Locking Type
Clamp-On
Collar Construction
1-Piece
Weight
0.0906 lbs
Number of Screws
1

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 12 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 28 mm, Inside Height to Flat Not Applicable, Collar Width 11 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 32.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 4.6 N-m, Bore Tolerance +0.050/+0.012 mm
