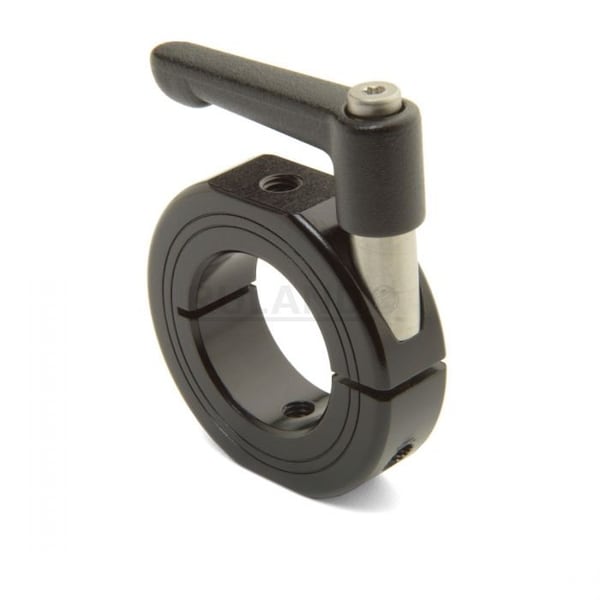

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-OF-MCL-16-F
Zoro # G008675917
product price:Â $39.89
/eaKey Features
Bore Dia.
16 mm
Material
Steel
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Outside Dia.
34 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
LV-OF-MCL-16-F
Zoro #
G008675917
UPC #
-
Country of Origin
United States
Dimensions
Bore Dia.
16 mm
Outside Dia.
34 mm
Width
13 mm
Screw Size
M5
Width Tolerance
+0.076/-0.254 mm
For Shaft Diameter
16 mm
Mount Hole Thread Size
M5
Screw Thread Size
M5
Lever Height
35 mm
Collar Outside Diameter
34 mm
Collar Width
13 mm
Bore Diameter
16 mm
Lever Length
30 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.5 N-m
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
