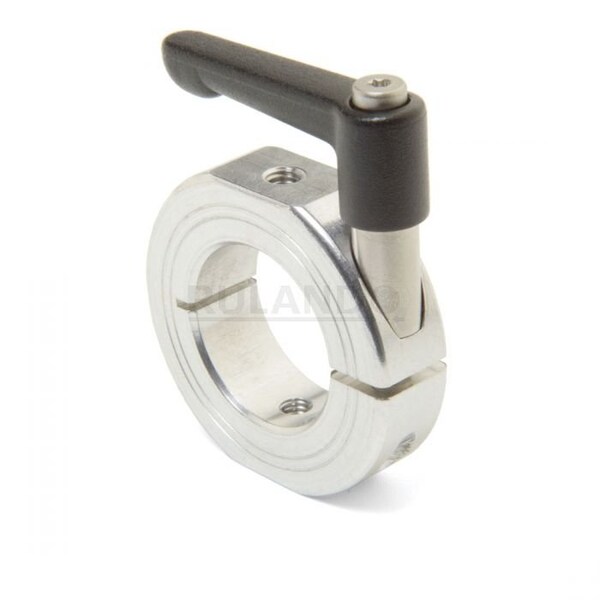

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-OF-MCL-20-A
Zoro # G208677315
product price: $40.19
/eaKey Features
Screw Material
Stainless Steel
Distance Across Flats
36 mm
Bore Tolerance
+0.050/+0.012 mm
Screw Seating Torque
16 N-m
System of Measurement
Metric
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LV-OF-MCL-20-A
Zoro #
G208677315
UPC #
-
Country of Origin
United States
Dimensions
Width Tolerance
+0.076/-0.254 mm
Bore Diameter
20 mm
For Shaft Diameter
20 mm
Mount Hole Thread Size
M6
Lever Length
45 mm
Screw Thread Size
M6
Collar Width
15 mm
Collar Outside Diameter
40 mm
Lever Height
38.5 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
