Shop RULAND

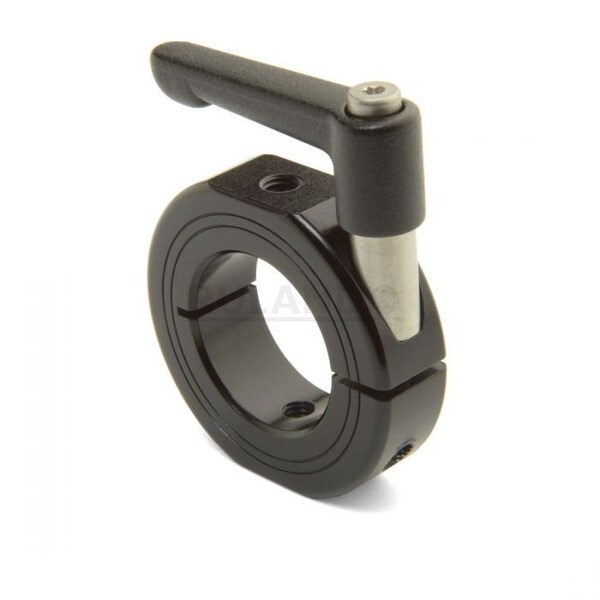

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-OF-MCL-20-AN

  • Zoro # G608677359

product price:  $53.99
/ea

Key Features

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
Screw Seating Torque
16 N-m
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LV-OF-MCL-20-AN
Zoro #
G608677359
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M6
Width Tolerance
+0.076/-0.254 mm
Collar Outside Diameter
40 mm
Bore Diameter
20 mm
For Shaft Diameter
20 mm
Screw Thread Size
M6
Lever Height
38.5 mm
Mount Hole Thread Size
M6
Lever Length
45 mm
Collar Width
15 mm

Details

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
Screw Seating Torque
16 N-m
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Quick Clamping Shaft Collar
Distance Across Flats
36 mm
System of Measurement
Metric
Bore Tolerance
+0.050/+0.012 mm
Collar Material Grade
2024
Lever Part Number
LF45-CL-M6: 18-ZS
Resistance Properties
Corrosion-Resistant
Component Mount Type
Outer Diameter Holes with Wrench Flats
Center to Lever Top
38.8 mm
Shaft Tolerance
+0.000/-0.013 mm
Screw Location from Center
14.73 mm
Shaft Locking Type
Clamp-On
Flat to Bore
8 mm
Bore Type
Round
Handle Color
Black
Collar Construction
1-Piece
Collar Material Finish
Anodized
Handle Material
Zinc
Handle Material Finish
Powder Coated
Screw Material Grade
303
Collar Material
Aluminum
Number of Screws
1
Weight
0.1715 lbs

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 16 N-m
