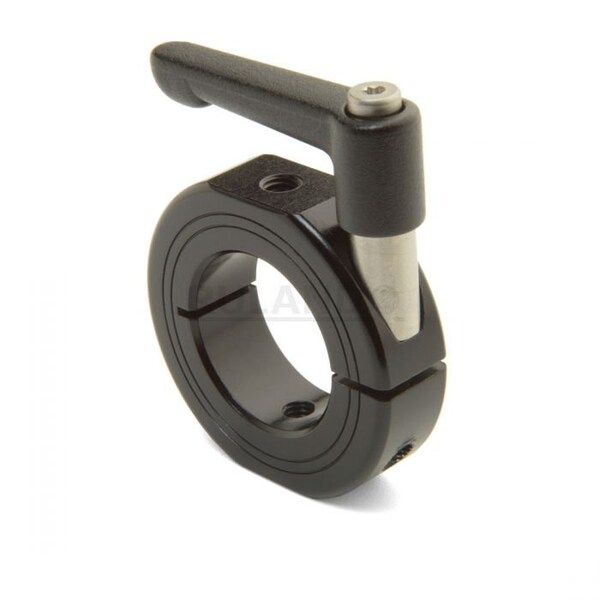

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-OF-MCL-20-F
Zoro # G508677343
product price:Â $42.89
/eaKey Features
Bore Dia.
20 mm
Material
Steel
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Outside Dia.
40 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
LV-OF-MCL-20-F
Zoro #
G508677343
UPC #
-
Country of Origin
United States
Dimensions
Bore Dia.
20 mm
Outside Dia.
40 mm
Width
15 mm
Screw Size
M6
Width Tolerance
+0.076/-0.254 mm
Collar Width
15 mm
Collar Outside Diameter
40 mm
Lever Height
38.5 mm
Bore Diameter
20 mm
Lever Length
45 mm
Screw Thread Size
M6
Mount Hole Thread Size
M6
For Shaft Diameter
20 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 16 N-m
