Shop RULAND

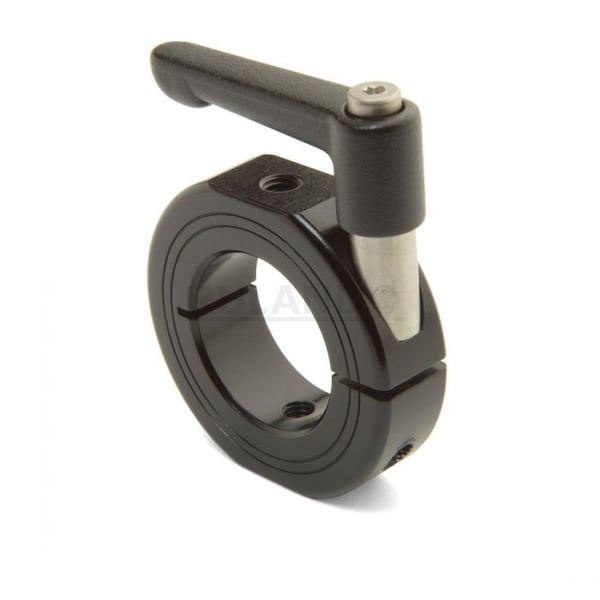

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-OF-MCL-24E-AN

  • Zoro # G808677289

product price:
$
83.59
/ea

Key Features

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
Screw Seating Torque
9.6 N-m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LV-OF-MCL-24E-AN
Zoro #
G808677289
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
Screw Seating Torque
9.6 N-m
Bore Tolerance
+0.0020/+0.0005 in
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Quick Clamping Shaft Collar
System of Measurement
Metric with Inch Bore
Distance Across Flats
55 mm
Collar Construction
1-Piece
Lever Part Number
LF45-CL-M6: 20-ZS
Resistance Properties
Corrosion-Resistant
Handle Material Finish
Powder Coated
Center to Lever Top
40.8 mm
Handle Material
Zinc
Handle Color
Black
Bore Type
Round
Collar Material
Aluminum
Screw Location from Center
24.99 mm
Shaft Tolerance
+0.0000/-0.0005 in
Component Mount Type
Outer Diameter Holes with Wrench Flats
Collar Material Grade
2024
Flat to Bore
7.5 mm
Collar Material Finish
Anodized
Screw Material Grade
303
Shaft Locking Type
Clamp-On
Number of Screws
1
Weight
0.2396 lbs

Description

Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
