Shop RULAND

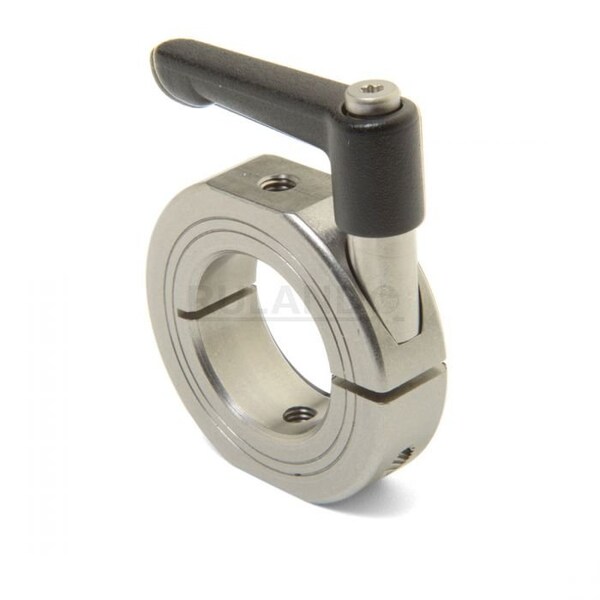

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-OF-MCL-25-SS

  • Zoro # G208677162

product price:  $56.69
/ea

Key Features

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
Width Tolerance
+0.076/-0.254 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LV-OF-MCL-25-SS
Zoro #
G208677162
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M6
Width Tolerance
+0.076/-0.254 mm
Mount Hole Thread Size
M6
Lever Height
38.5 mm
For Shaft Diameter
25 mm
Screw Thread Size
M6
Collar Outside Diameter
45 mm
Lever Length
45 mm
Bore Diameter
25 mm
Collar Width
15 mm

Details

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Quick Clamping Shaft Collar
Bore Tolerance
+0.050/+0.012 mm
System of Measurement
Metric
Screw Seating Torque
9.6 N-m
Distance Across Flats
41 mm
Collar Construction
1-Piece
Center to Lever Top
38.8 mm
Bore Type
Round
Handle Material Finish
Powder Coated
Handle Material
Zinc
Screw Location from Center
17.5 mm
Screw Material Grade
303
Shaft Tolerance
+0.000/-0.013 mm
Collar Material Grade
303
Flat to Bore
8 mm
Handle Color
Black
Collar Material
Stainless Steel
Collar Material Finish
Bright
Shaft Locking Type
Clamp-On
Component Mount Type
Outer Diameter Holes with Wrench Flats
Resistance Properties
Corrosion-Resistant
Lever Part Number
LF45-CL-M6: 18-ZS
Number of Screws
1
Weight
0.3426 lbs

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 25 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.6 N-m

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
