Shop RULAND

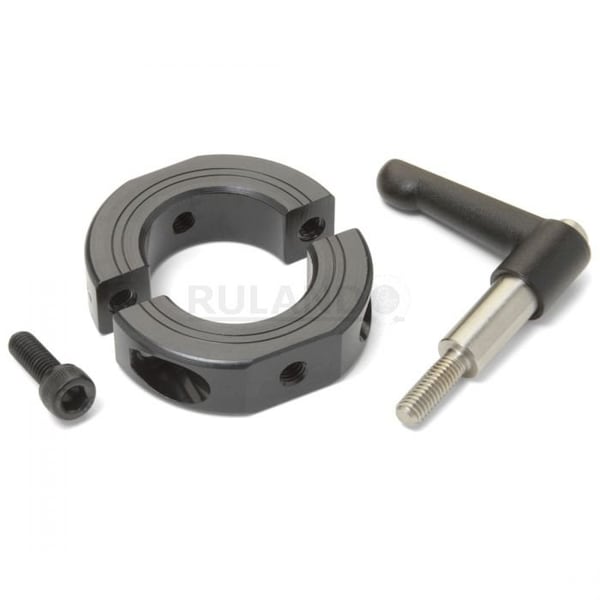

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LV-OF-MSP-20-F

  • Zoro # G108677224

product price:
$
47.99
/ea

Key Features

Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
Screw Seating Torque
16 N-m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LV-OF-MSP-20-F
Zoro #
G108677224
UPC #
-
Country of Origin
United States
Number of Pieces
2
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
Screw Seating Torque
16 N-m
System of Measurement
Metric
Item
Quick Clamping Shaft Collar
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
Distance Across Flats
36 mm
Collar Material
Carbon Steel
Lever Part Number
LF45-CL-M6: 18-ZS
Flat to Bore
8 mm
Handle Material
Zinc
Bore Type
Round
Center to Lever Top
38.8 mm
Collar Material Grade
1215
Handle Color
Black
Screw Location from Center
14.73 mm
Collar Construction
2-Piece
Screw Material Grade
303
Collar Material Finish
Black Oxide
Handle Material Finish
Powder Coated
Shaft Tolerance
+0.000/-0.013 mm
Component Mount Type
Outer Diameter Holes with Wrench Flats
Shaft Locking Type
Clamp-On
Resistance Properties
Corrosion-Resistant
Number of Screws
2
Weight
0.2903 lbs

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 16 N-m
