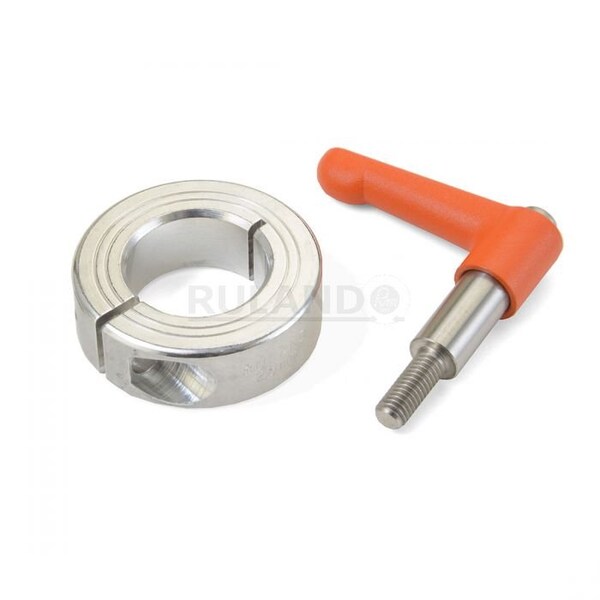

SHAFT COLLAR QUICK CLAMPING
Mfr # LVO-MCL-14-A
Zoro # G708678010
product price:Â
$
32.89
/ea
Key Features
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M4
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVO-MCL-14-A
- Zoro #
- G708678010
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Shaft Collar with Clamping Lever
- Screw Material
- Stainless Steel
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Screw Seating Torque
- 4.6 N-m
- System of Measurement
- Metric
- Bore Tolerance
- +0.050/+0.012 mm
- Item
- Quick Clamping Shaft Collar
- Handle Material Finish
- Powder Coated
- Screw Material Grade
- 303
- Handle Material
- Zinc
- Handle Color
- Orange
- Collar Material Finish
- Bright
- Collar Material Grade
- 2024
- Shaft Locking Type
- Clamp-On
- Screw Location from Center
- 11 mm
- Shaft Tolerance
- +0.000/-0.013 mm
- Collar Construction
- 1-Piece
- Collar Material
- Aluminum
- Lever Part Number
- LF30-CL-M4: 12-ZS-O
- Center to Lever Top
- 32.2 mm
- Bore Type
- Round
- Weight
- 0.0971 lbs
- Number of Screws
- 1
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 14 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 30 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 32.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 4.6 N-m, Bore Tolerance +0.050/+0.012 mm
