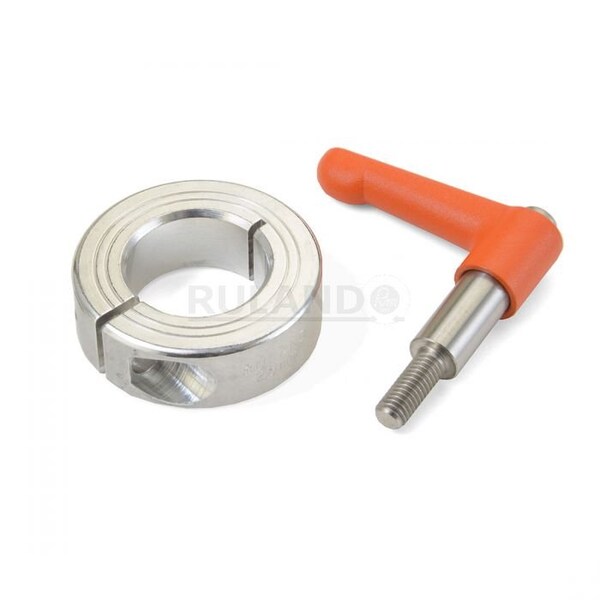

SHAFT COLLAR QUICK CLAMPING
- Mfr # LVO-MCL-15-A
- Zoro # G208677971
product price:Â
$
35.59
/ea
Key Features
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M5
Screw Material
Stainless Steel
Width Tolerance
+0.076/-0.254 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVO-MCL-15-A
- Zoro #
- G208677971
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Shaft Collar with Clamping Lever
- Screw Material
- Stainless Steel
- System of Measurement
- Metric
- Item
- Quick Clamping Shaft Collar
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Bore Tolerance
- +0.050/+0.012 mm
- Screw Seating Torque
- 9.5 N-m
- Collar Material Finish
- Bright
- Center to Lever Top
- 35.2 mm
- Shaft Tolerance
- +0.000/-0.013 mm
- Lever Part Number
- LF30-CL-M5: 15-ZS-O
- Handle Material
- Zinc
- Collar Construction
- 1-Piece
- Bore Type
- Round
- Shaft Locking Type
- Clamp-On
- Screw Material Grade
- 303
- Handle Color
- Orange
- Collar Material Grade
- 2024
- Collar Material
- Aluminum
- Handle Material Finish
- Powder Coated
- Screw Location from Center
- 12.5 mm
- Number of Screws
- 1
- Weight
- 0.1224 lbs
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 15 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 9.5 N-m, Bore Tolerance +0.050/+0.012 mm
