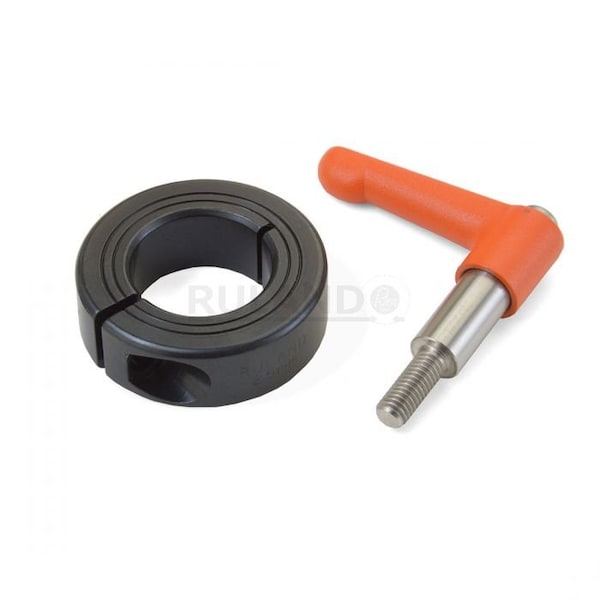

SHAFT COLLAR QUICK CLAMPING
Mfr # LVO-MCL-15E-AN
Zoro # G608678035
product price:Â
$
47.39
/ea
Key Features
Screw Material
Stainless Steel
Width Tolerance
+0.076/-0.254 mm
Bore Tolerance
+0.0020/+0.0005 in
System of Measurement
Metric with Inch Bore
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVO-MCL-15E-AN
- Zoro #
- G608678035
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Bore Tolerance
- +0.0020/+0.0005 in
- System of Measurement
- Metric with Inch Bore
- Item
- Quick Clamping Shaft Collar
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Screw Seating Torque
- 9.6 N-m
- Handle Color
- Orange
- Lever Part Number
- LF45-CL-M6: 18-ZS-O
- Shaft Tolerance
- +0.0000/-0.0005 in
- Handle Material Finish
- Powder Coated
- Handle Material
- Zinc
- Screw Location from Center
- 17.5 mm
- Collar Material
- Aluminum
- Shaft Locking Type
- Clamp-On
- Collar Construction
- 1-Piece
- Bore Type
- Round
- Center to Lever Top
- 38.8 mm
- Collar Material Finish
- Anodized
- Collar Material Grade
- 2024
- Resistance Properties
- Corrosion-Resistant
- Screw Material Grade
- 303
Description
Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 15/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
