Shop RULAND

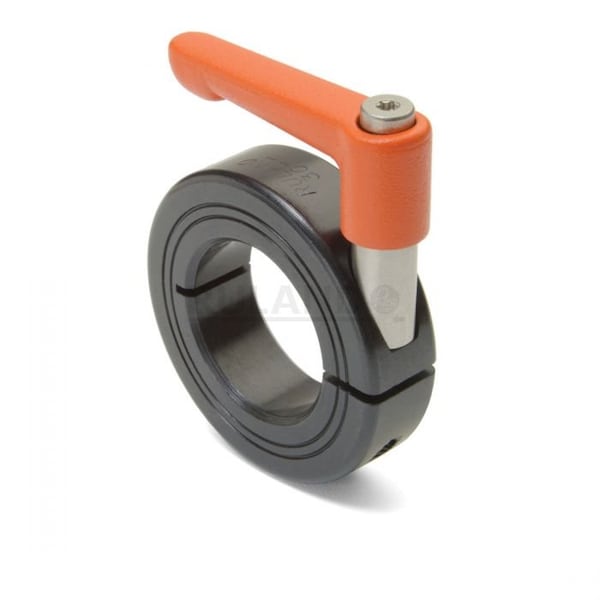

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LVO-MCL-16-F

  • Zoro # G908678087

product price:
$
34.89
/ea

Key Features

Screw Material
Stainless Steel
Screw Seating Torque
9.5 N-m
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Width Tolerance
+0.076/-0.254 mm
System of Measurement
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LVO-MCL-16-F
Zoro #
G908678087
UPC #
-
Country of Origin
United States
Screw Material
Stainless Steel
Screw Seating Torque
9.5 N-m
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Quick Clamping Shaft Collar
System of Measurement
Metric
Bore Tolerance
+0.050/+0.012 mm
Shaft Tolerance
+0.000/-0.013 mm
Handle Material
Zinc
Collar Material
Carbon Steel
Screw Location from Center
12.5 mm
Center to Lever Top
35.2 mm
Bore Type
Round
Handle Material Finish
Powder Coated
Collar Construction
1-Piece
Collar Material Finish
Black Oxide
Resistance Properties
Corrosion-Resistant
Shaft Locking Type
Clamp-On
Collar Material Grade
1215
Lever Part Number
LF30-CL-M5: 15-ZS-O
Screw Material Grade
303
Handle Color
Orange
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Weight
0.2107 lbs
Number of Screws
1

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.5 N-m
