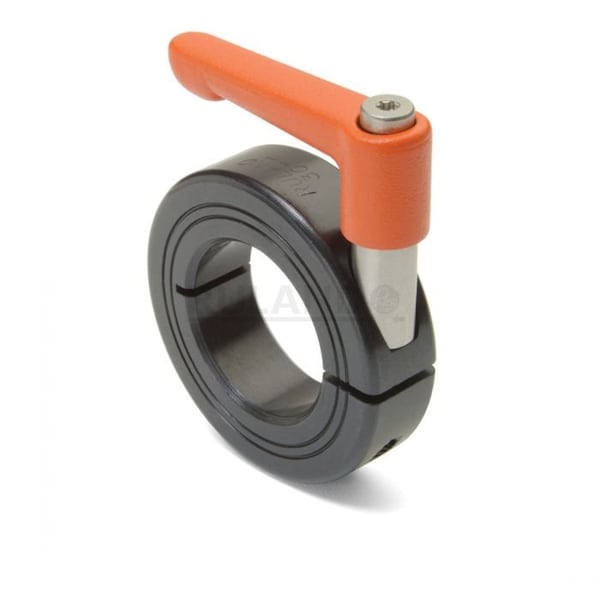

SHAFT COLLAR QUICK CLAMPING
- Mfr # LVO-MCL-18-F
- Zoro # G608675850
product price:Â
$
35.59
/ea
Key Features
Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
Screw Seating Torque
9.5 N-m
Width Tolerance
+0.076/-0.254 mm
System of Measurement
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVO-MCL-18-F
- Zoro #
- G608675850
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Bore Tolerance
- +0.050/+0.012 mm
- Item
- Quick Clamping Shaft Collar
- Screw Seating Torque
- 9.5 N-m
- System of Measurement
- Metric
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Screw Material Grade
- 303
- Handle Material
- Zinc
- Handle Color
- Orange
- Bore Type
- Round
- Shaft Tolerance
- +0.000/-0.013 mm
- Collar Material Grade
- 1215
- Lever Part Number
- LF30-CL-M5: 15-ZS-O
- Resistance Properties
- Corrosion-Resistant
- Handle Material Finish
- Powder Coated
- Shaft Locking Type
- Clamp-On
- Collar Material Finish
- Black Oxide
- Center to Lever Top
- 35.2 mm
- Collar Material
- Carbon Steel
- Screw Location from Center
- 13.49 mm
- Collar Construction
- 1-Piece
Dimensions
- Width Tolerance
- +0.076/-0.254 mm
- Screw Thread Size
- M5
- Lever Length
- 30 mm
- For Shaft Diameter
- 18 mm
- Bore Diameter
- 18 mm
- Collar Width
- 13 mm
- Lever Height
- 35 mm
- Collar Outside Diameter
- 36 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 18 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 36 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.5 N-m
