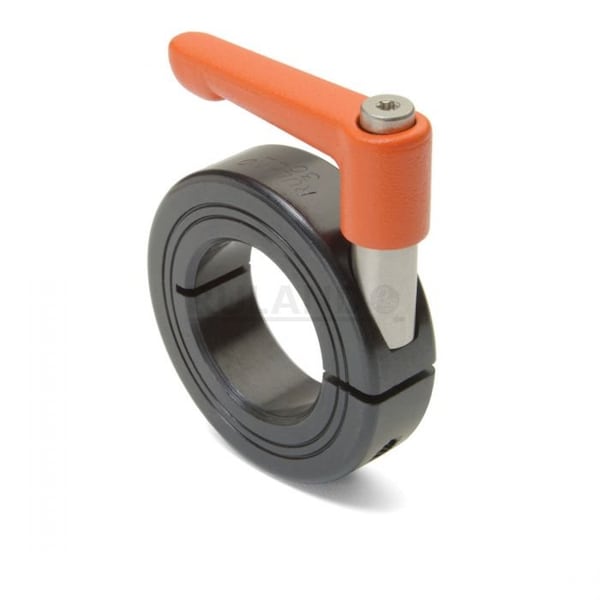

SHAFT COLLAR QUICK CLAMPING
Mfr # LVO-MCL-22E-F
Zoro # G708677372
product price:Â
$
45.59
/ea
Key Features
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
16 N-m
Bore Tolerance
+0.0020/+0.0005 in
System of Measurement
Metric with Inch Bore
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVO-MCL-22E-F
- Zoro #
- G708677372
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Screw Seating Torque
- 16 N-m
- Item
- Quick Clamping Shaft Collar
- Bore Tolerance
- +0.0020/+0.0005 in
- System of Measurement
- Metric with Inch Bore
- Collar Material Finish
- Black Oxide
- Collar Material Grade
- 1215
- Collar Construction
- 1-Piece
- Lever Part Number
- LF45-CL-M6: 20-ZS-O
- Shaft Locking Type
- Clamp-On
- Resistance Properties
- Corrosion-Resistant
- Handle Material
- Zinc
- Handle Color
- Orange
- Screw Location from Center
- 23.24 mm
- Center to Lever Top
- 40.8 mm
- Shaft Tolerance
- +0.0000/-0.0005 in
- Collar Material
- Carbon Steel
- Handle Material Finish
- Powder Coated
- Bore Type
- Round
- Screw Material Grade
- 303
Description
Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 3/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 57 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
