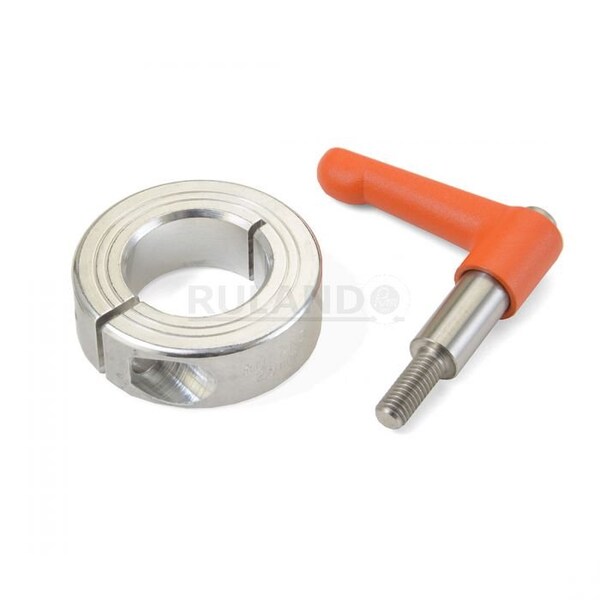

SHAFT COLLAR QUICK CLAMPING
Mfr # LVO-MCL-24-A
Zoro # G908677134
product price:Â $41.19
/eaKey Features
Screw Material
Stainless Steel
System of Measurement
Metric
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
Width Tolerance
+0.076/-0.254 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
LVO-MCL-24-A
Zoro #
G908677134
UPC #
-
Country of Origin
United States
Dimensions
Width Tolerance
+0.076/-0.254 mm
Lever Height
38.5 mm
Collar Outside Diameter
45 mm
Lever Length
45 mm
Collar Width
15 mm
Bore Diameter
24 mm
Screw Thread Size
M6
For Shaft Diameter
24 mm
Screw Size
M6
Outside Dia.
45 mm
Bore Dia.
24 mm
Width
15 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 24 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
