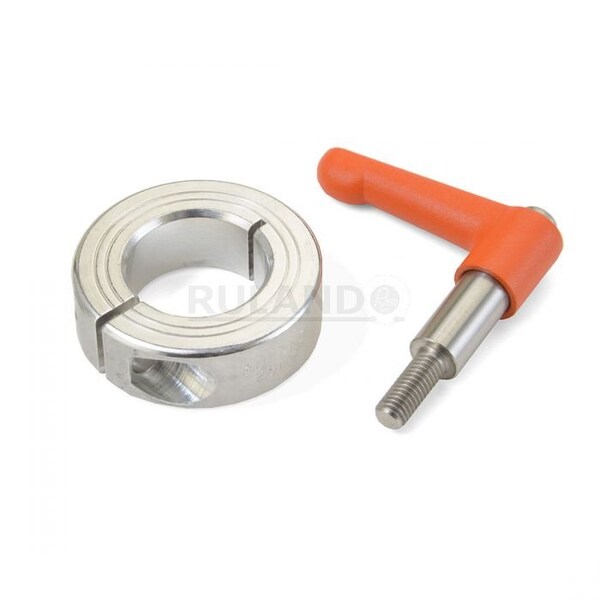

SHAFT COLLAR QUICK CLAMPING
Mfr # LVO-MCL-32-A
Zoro # G408677245
product price:Â
$
46.59
/ea
Key Features
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M6
Screw Material
Stainless Steel
System of Measurement
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVO-MCL-32-A
- Zoro #
- G408677245
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Shaft Collar with Clamping Lever
- Screw Material
- Stainless Steel
- System of Measurement
- Metric
- Standards
- Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Screw Seating Torque
- 16 N-m
- Bore Tolerance
- +0.050/+0.012 mm
- Item
- Quick Clamping Shaft Collar
- Bore Type
- Round
- Handle Material
- Zinc
- Handle Color
- Orange
- Center to Lever Top
- 40.8 mm
- Collar Material
- Aluminum
- Handle Material Finish
- Powder Coated
- Shaft Tolerance
- +0.000/-0.013 mm
- Shaft Locking Type
- Clamp-On
- Collar Material Grade
- 2024
- Collar Material Finish
- Bright
- Screw Material Grade
- 303
- Lever Part Number
- LF45-CL-M6: 20-ZS-O
- Collar Construction
- 1-Piece
- Screw Location from Center
- 21.49 mm
- Number of Screws
- 1
- Weight
- 0.2286 lbs
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 32 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 54 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
